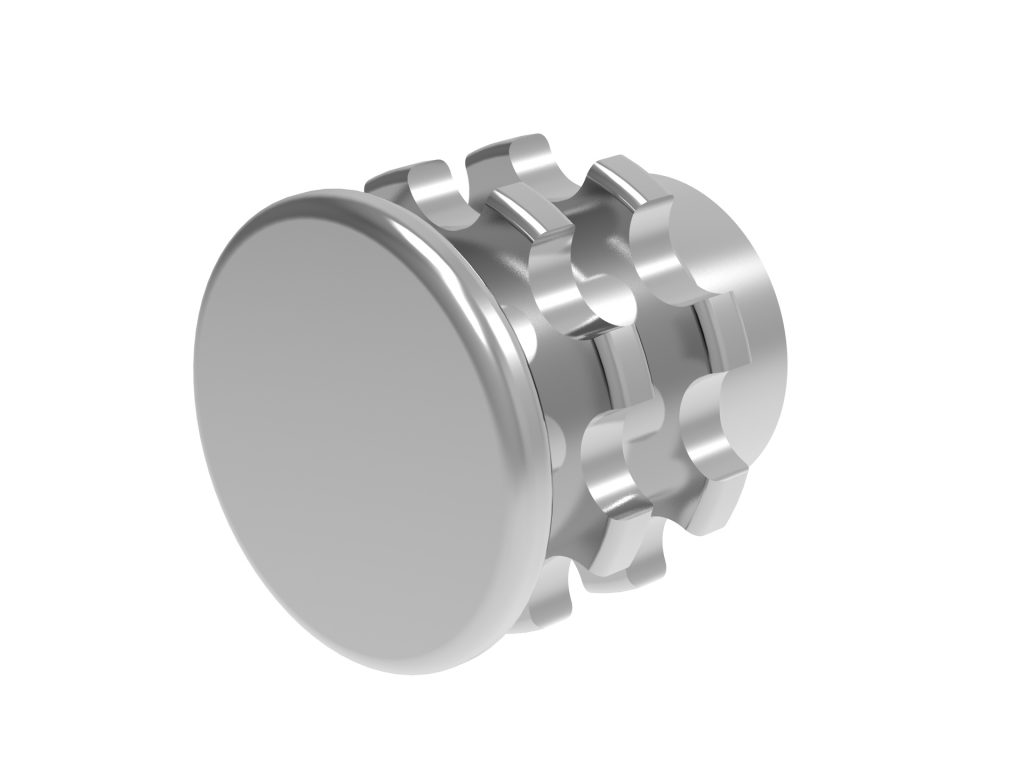

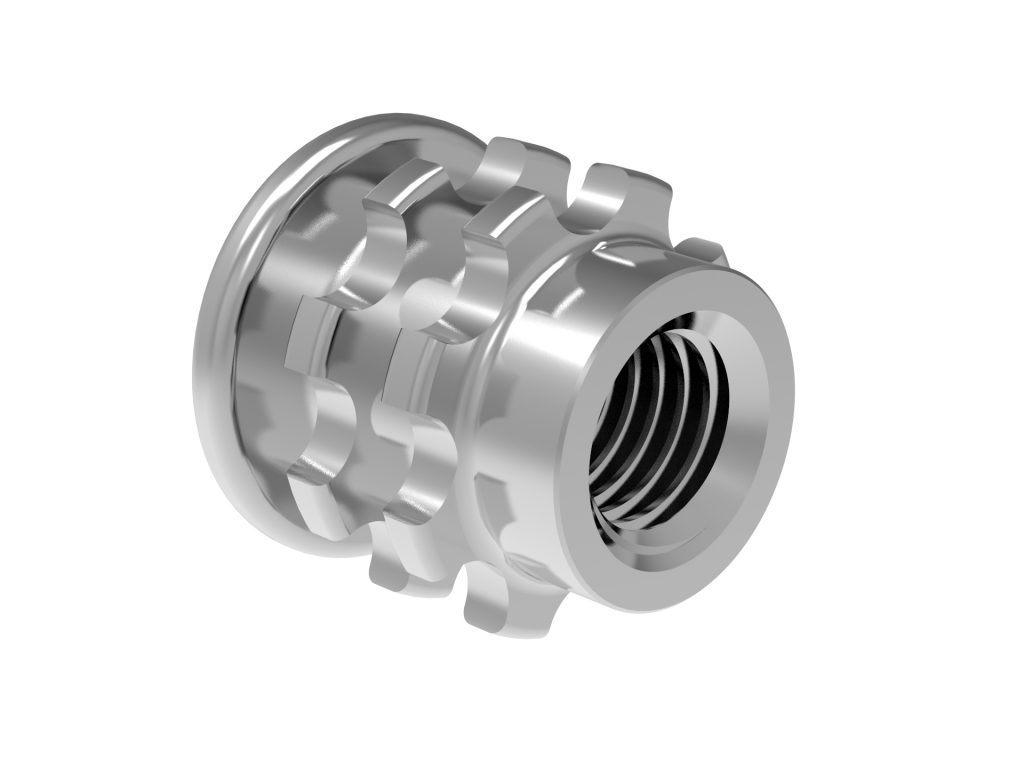

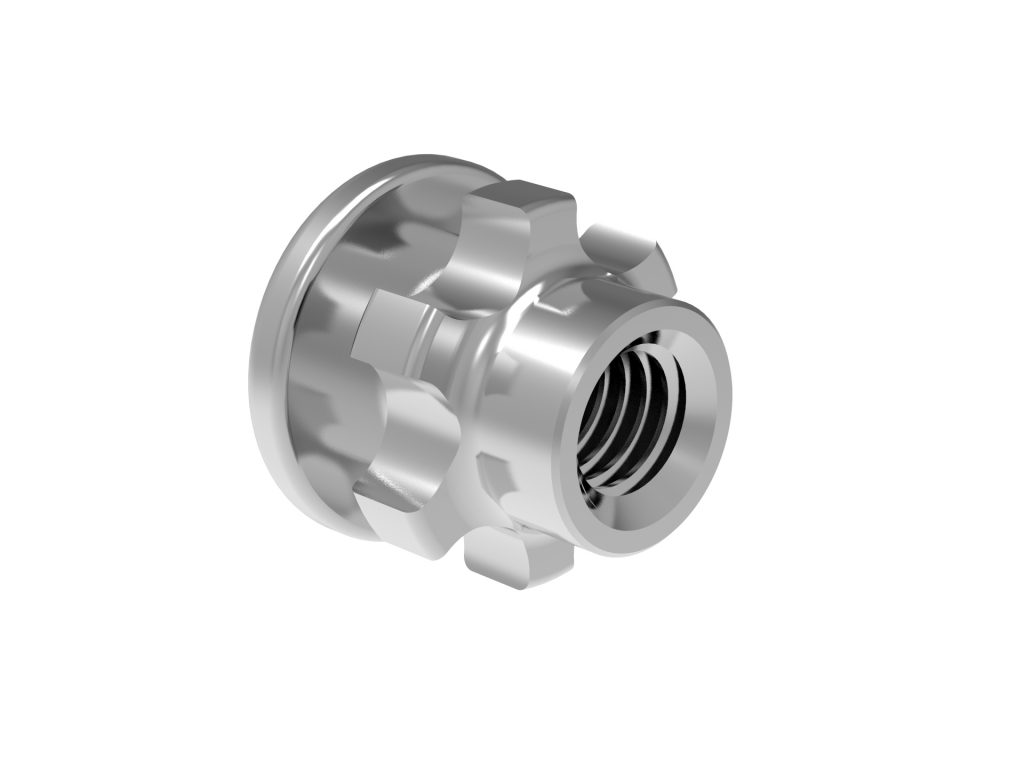

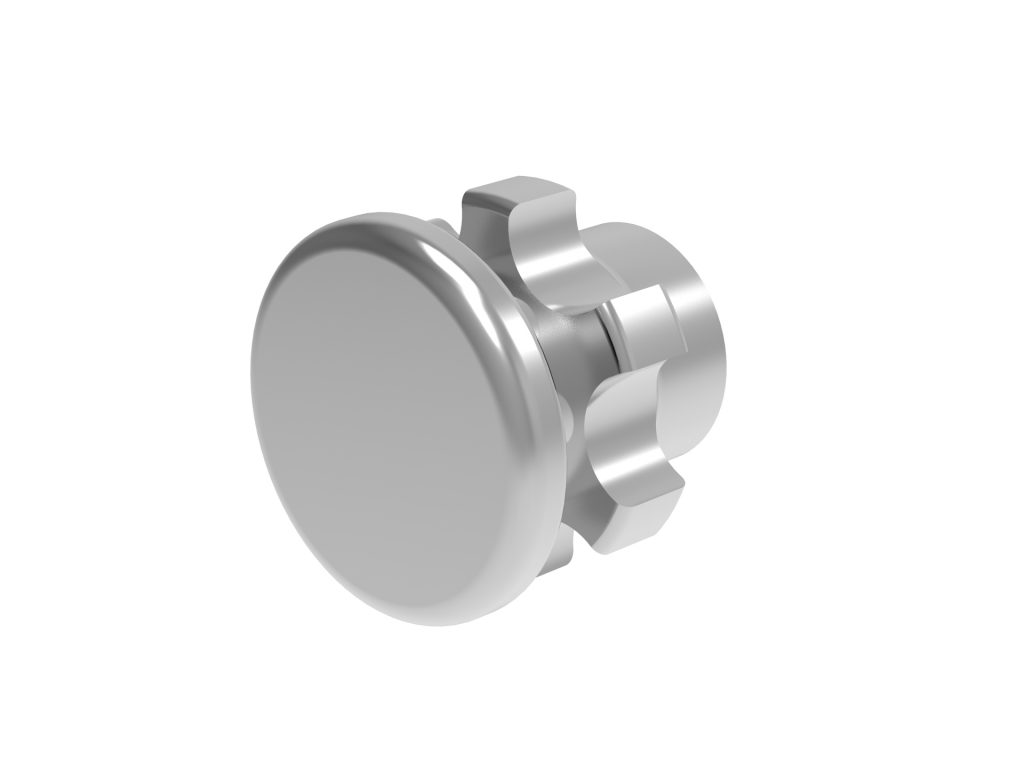

HGSS High Grip Metric Series - 316 Stainless Steel
Premium Corrosion-Resitant Threaded Inserts for Rotational Moulding

  • Suitable for prolonged exposure to seawater and chemicals
  • Maximum pullout-resistance and spin-resistance
  • Keyed to plastic by innovative High Grip flange profile
  • Blind style
  • Stocked in thread sizes: M5 - M12


↓ Scroll and select product code to show Images and Drawing

Pricelist
Product Code
Thread
Thread Style
Head Style
Dimensions (mm)
Length (A)
Ø B
Head (B)
Ø C
Install Hole Ø
Thread Length
Product Code: HGSS.M5-12B
Thread: M5
Thread Style: Blind
Head Style: –
Dimensions (mm)
Length (A): 12
Ø B: 12.7
head: –
Ø C: 8
Install Hole Ø: –
Thread Length: 9
Product Code: HGSS.M6-13B
Thread: M6
Thread Style: Blind
Head Style: –
Dimensions (mm)
Length (A): 13
Ø B: 14.3
head: –
Ø C: 9
Install Hole Ø: –
Thread Length: 9.5
Product Code: HGSS.M8-16B
Thread: M8
Thread Style: Blind
Head Style: –
Dimensions (mm)
Length (A): 16
Ø B: 18
head: –
Ø C: 12
Install Hole Ø: –
Thread Length: 12
Product Code: HGSS.M10-20B
Thread: M10
Thread Style: Blind
Head Style: –
Dimensions (mm)
Length (A): 20
Ø B: 22
head: –
Ø C: 15
Install Hole Ø: –
Thread Length: 15
Product Code: HGSS.M12-24B
Thread: M12
Thread Style: Blind
Head Style: –
Dimensions (mm)
Length (A): 24
Ø B: 25
head: –
Ø C: 18
Install Hole Ø: –
Thread Length: 18
