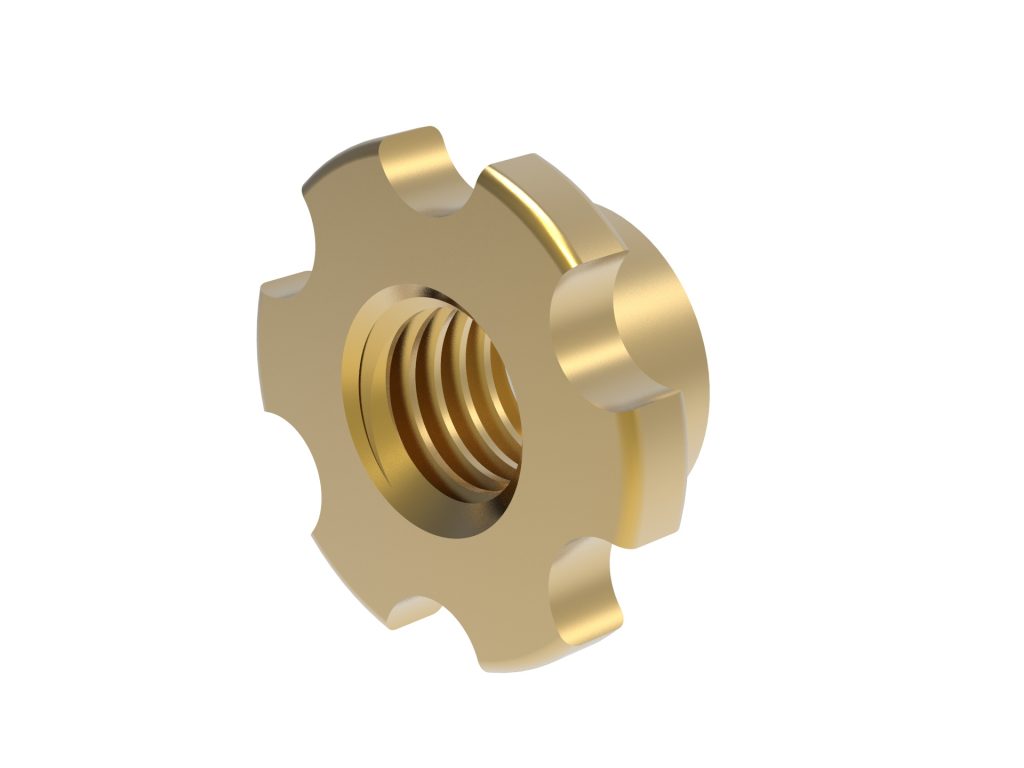

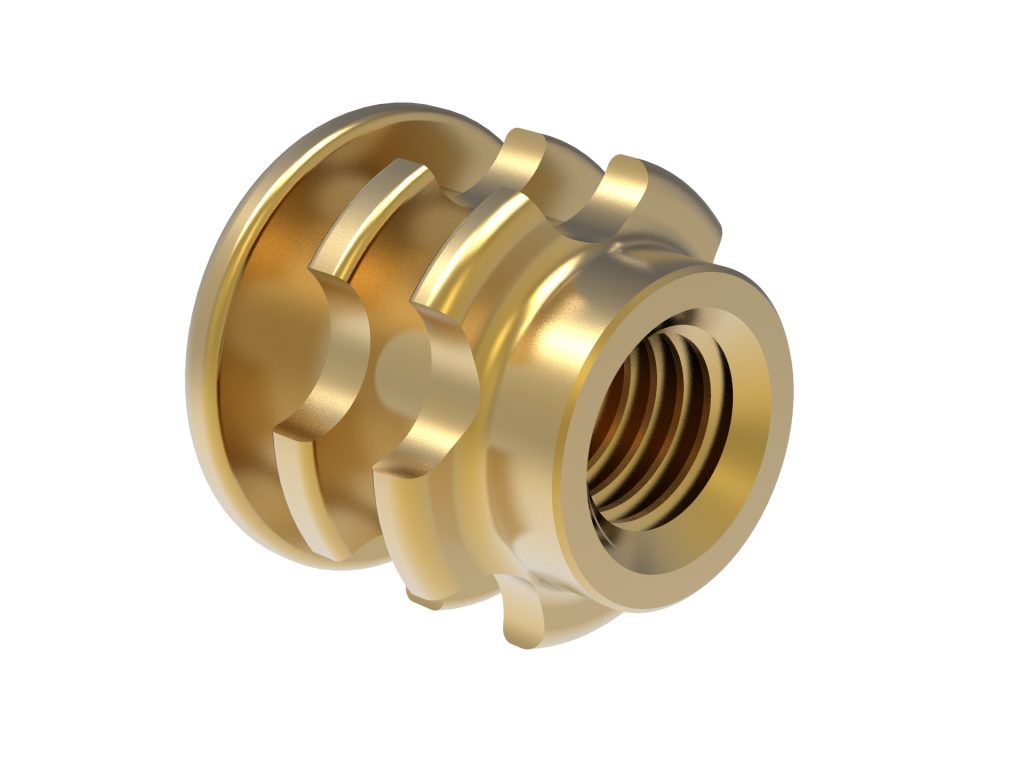

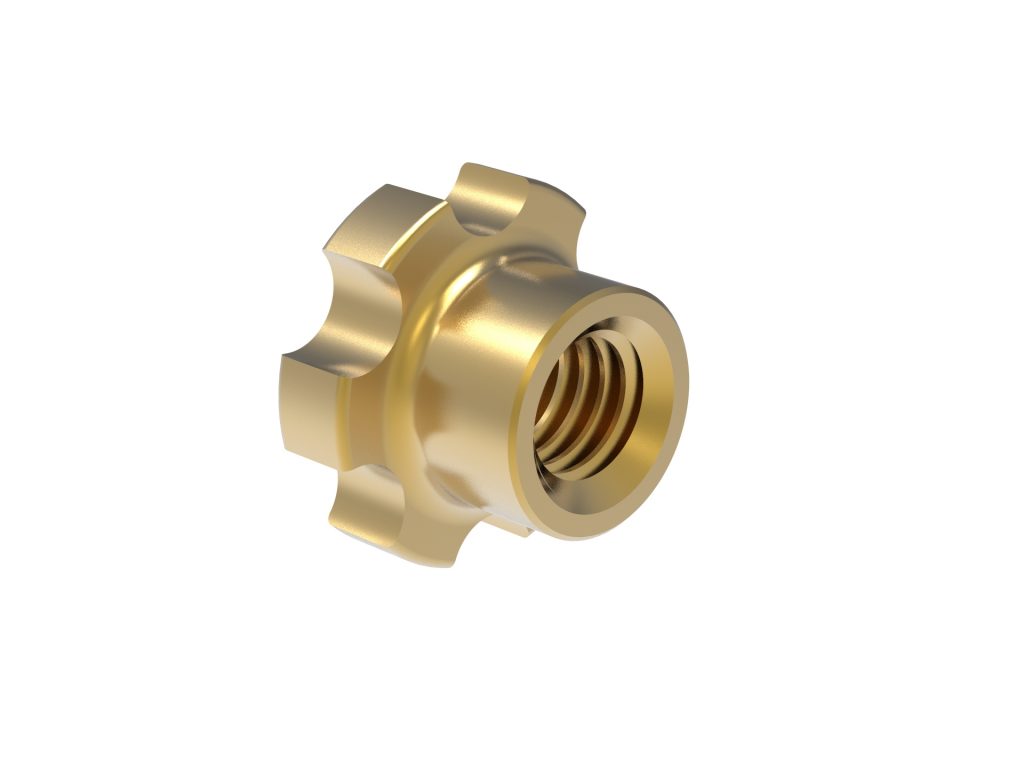

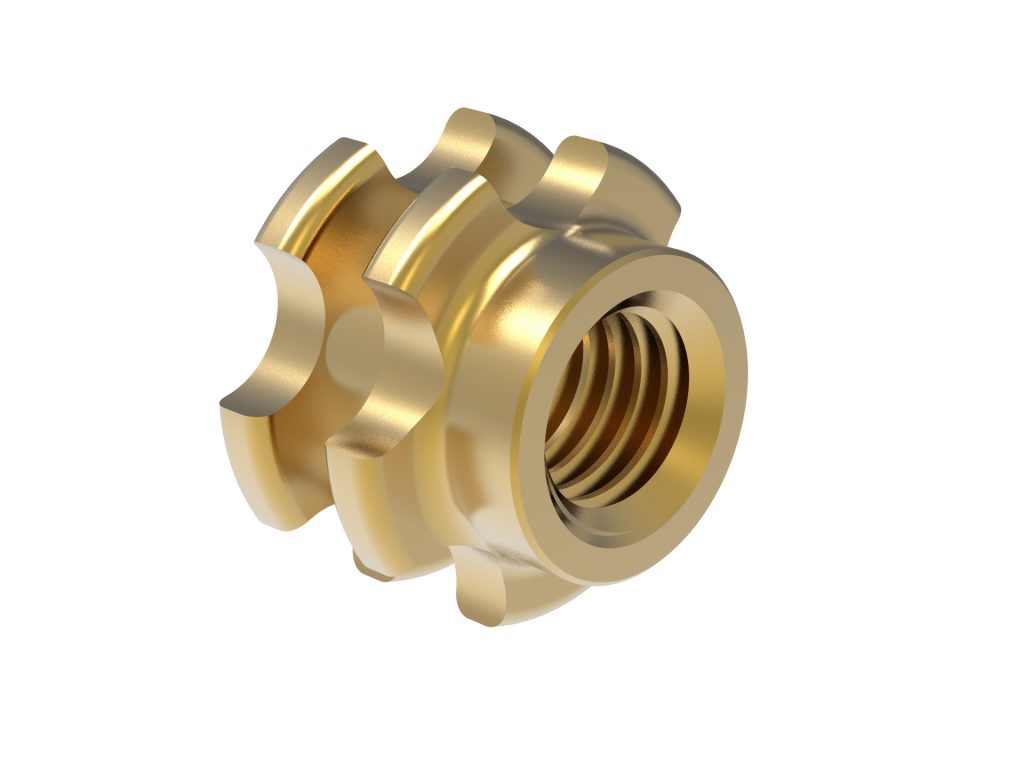

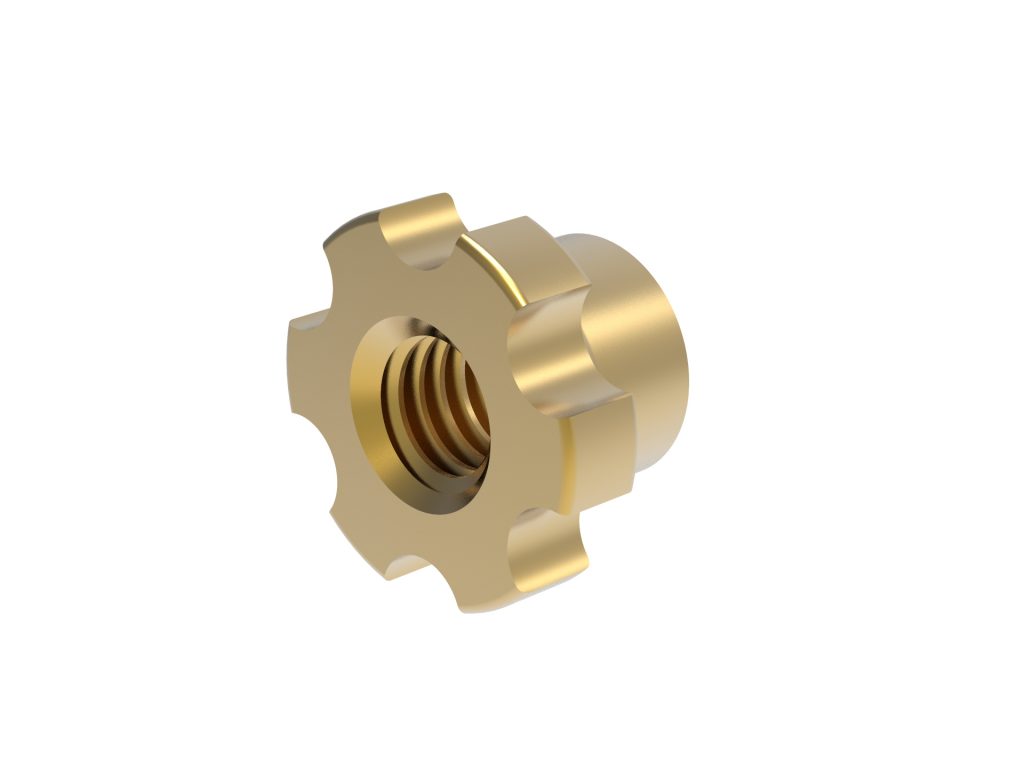

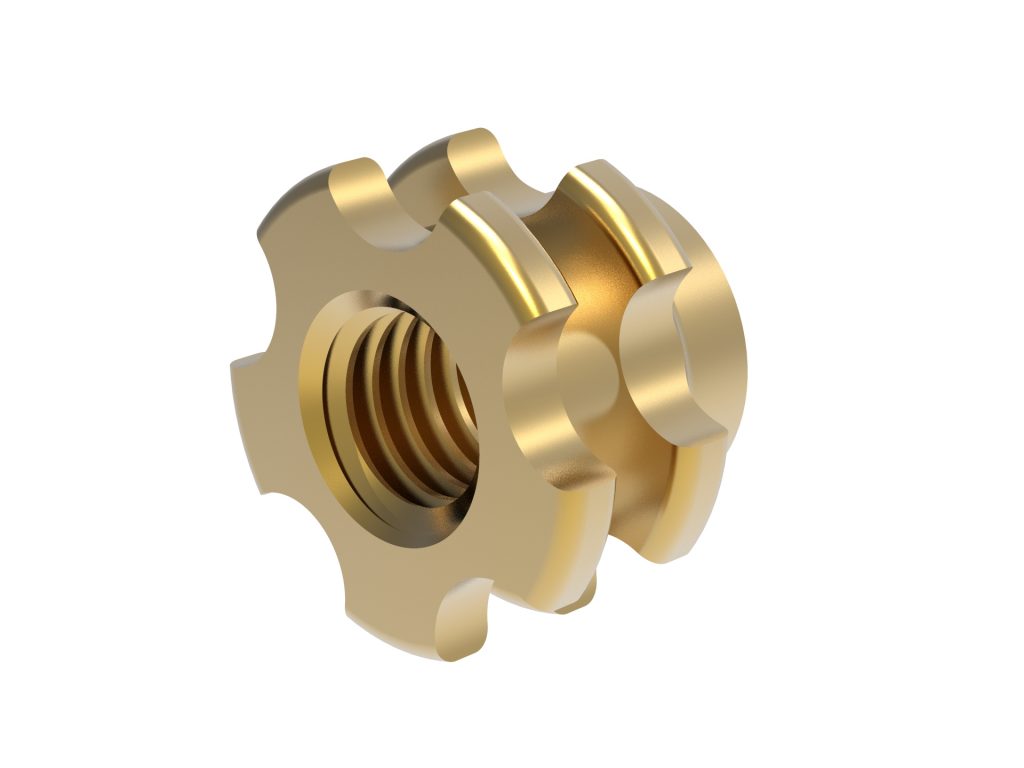

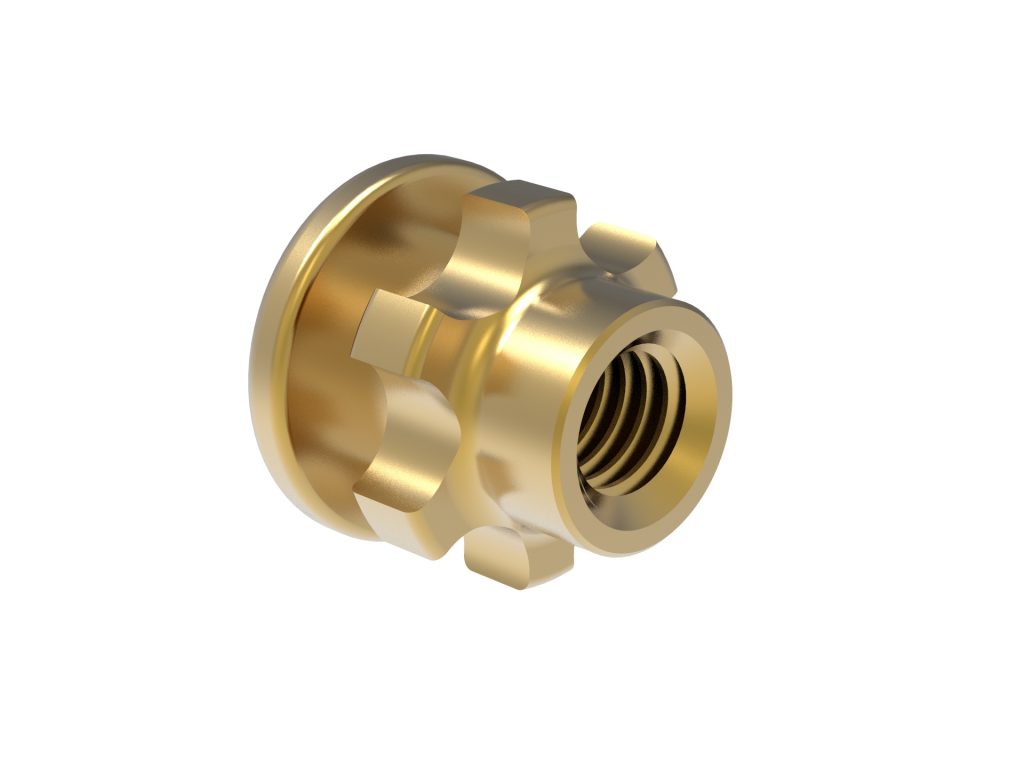

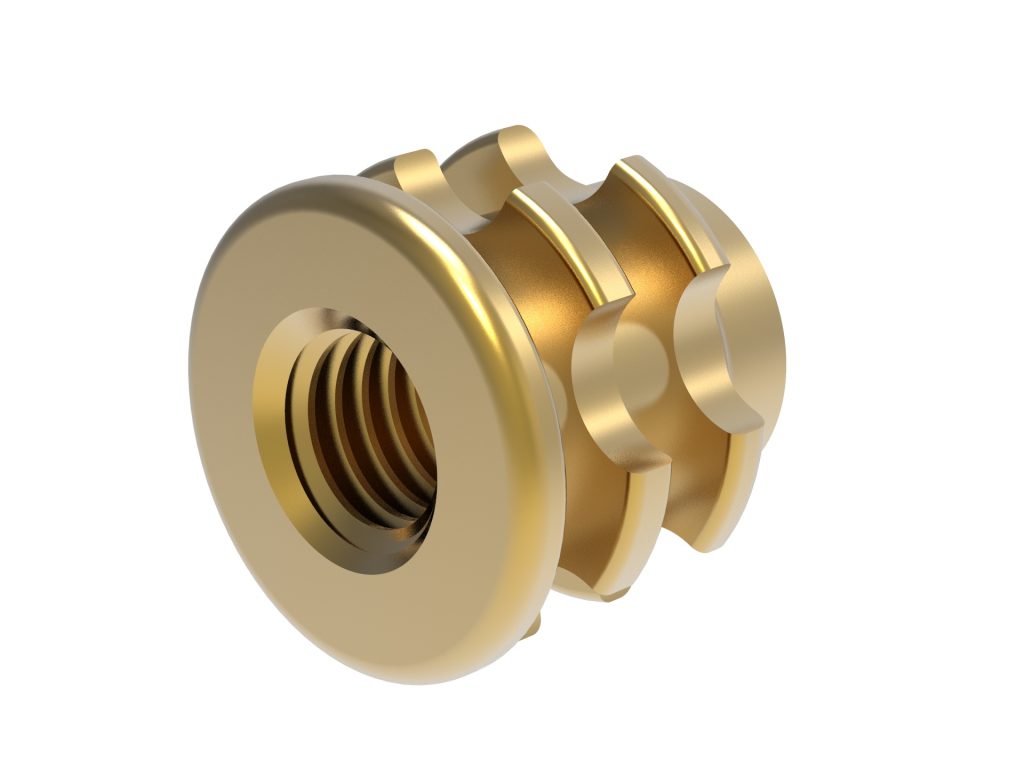

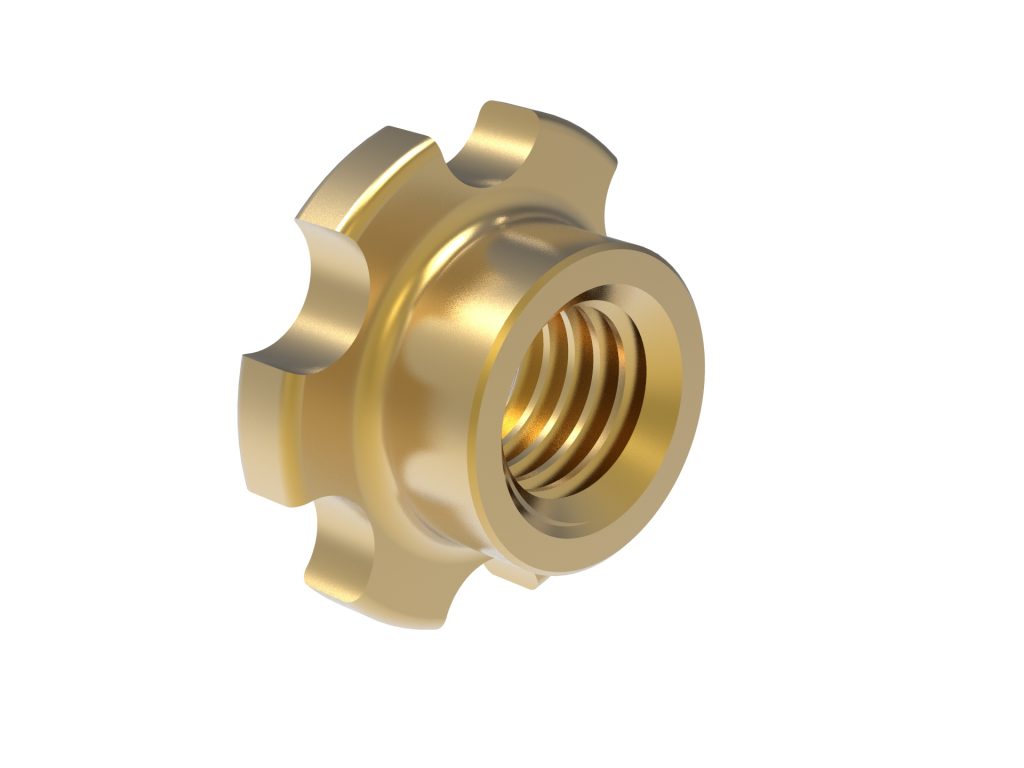

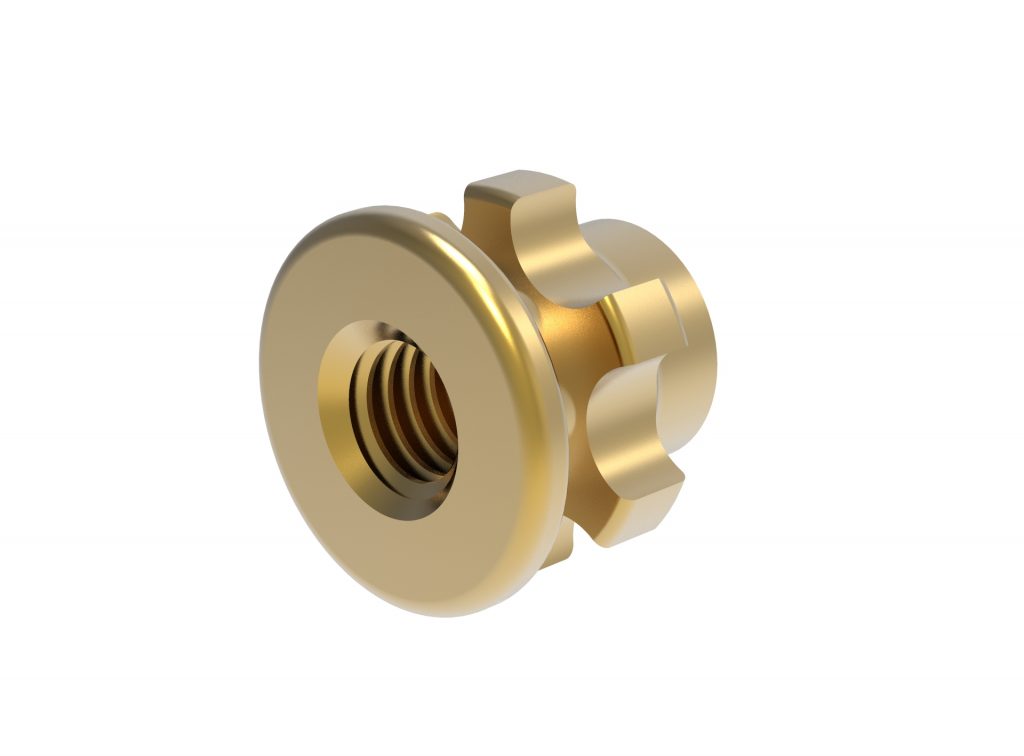

HG High Grip Metric Series - Brass
High Performance Threaded Inserts for Rotational Moulding

Maximum pullout-resistance and spin-resistance
Generous Dimensions
Keyed to plastic by innovative High Grip flange profile

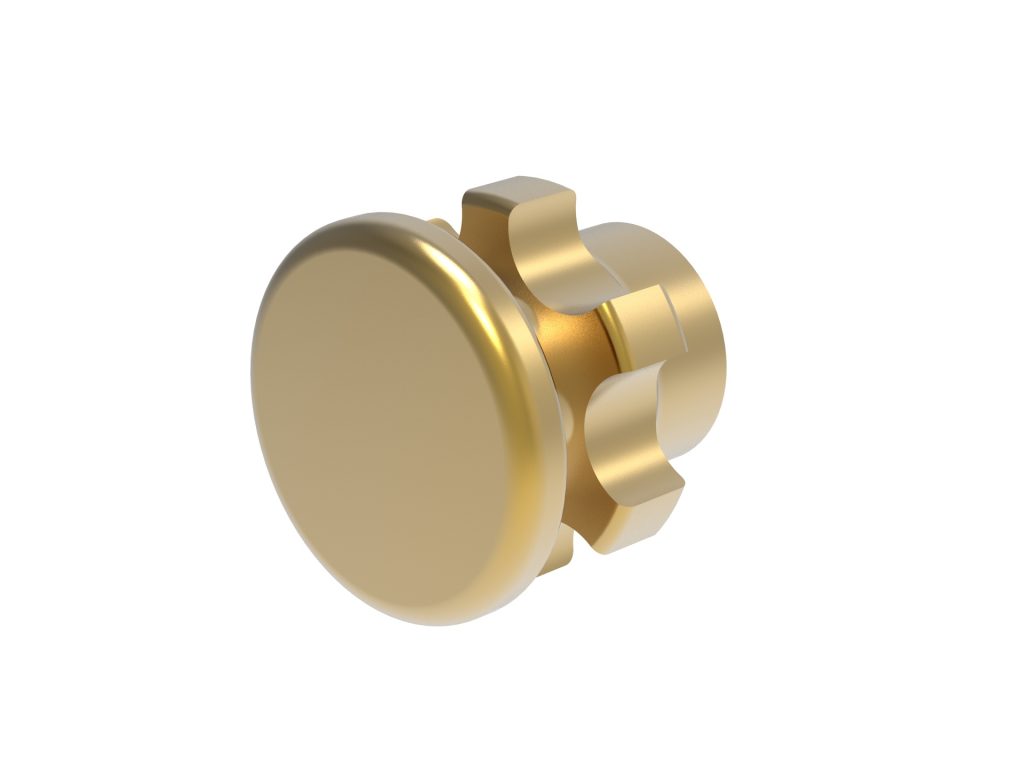

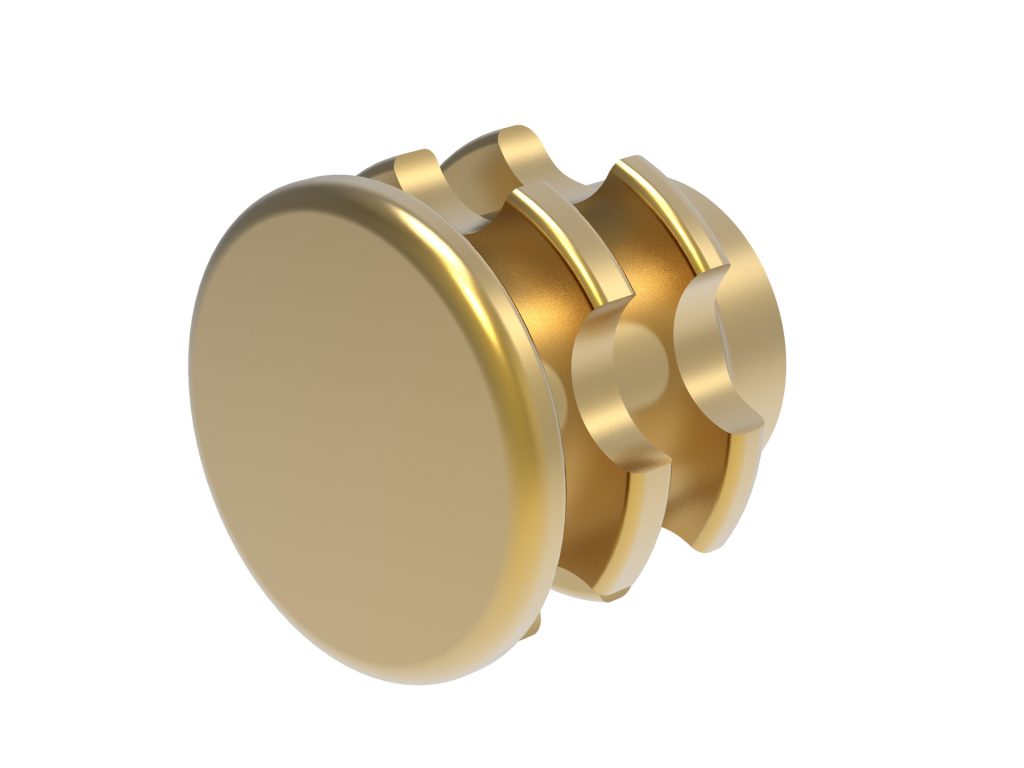

Thru thread and Blind thread styles
Stocked in thread sizes: M5 - M16

↓ Scroll and select product code to show Images and Drawing

Pricelist

Product Code

Thread

Thread Style

Head Style

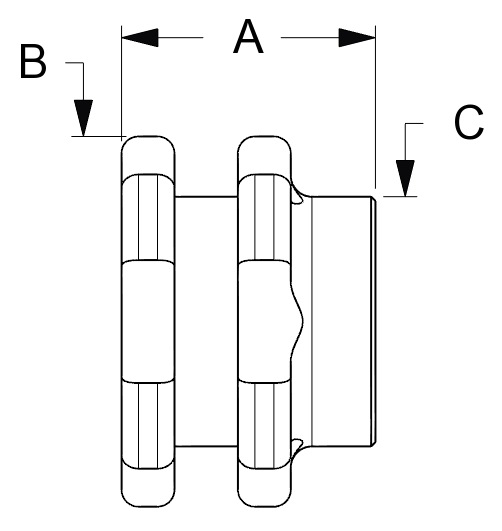

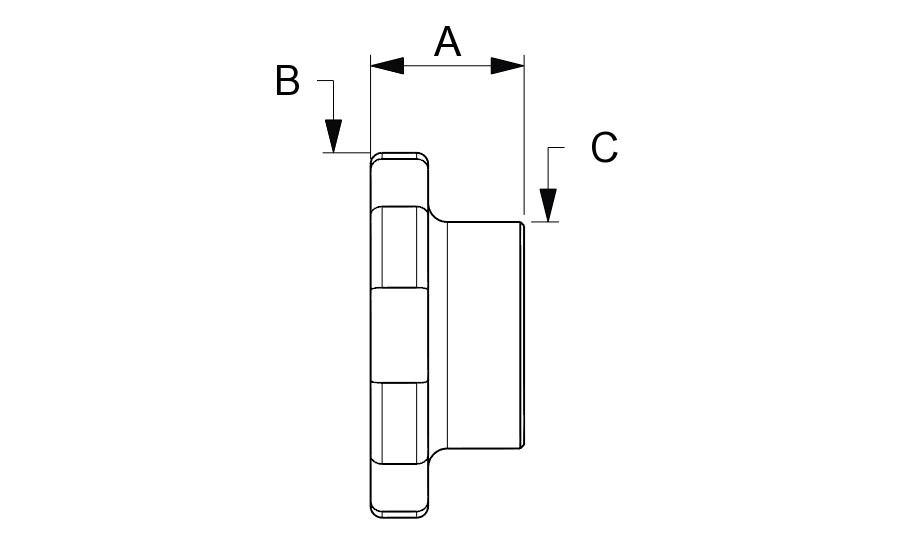

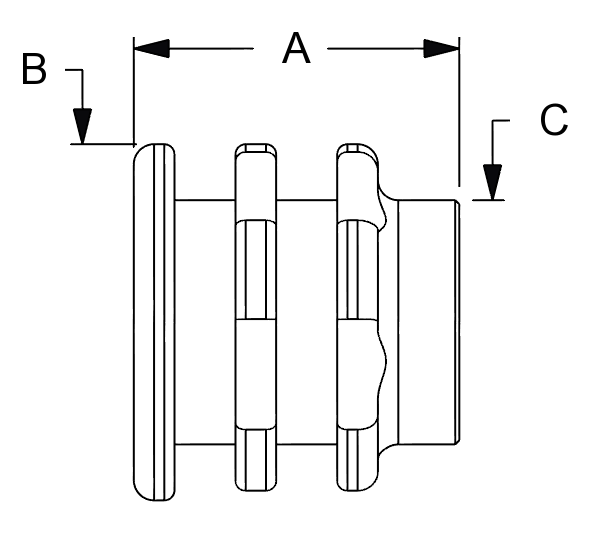

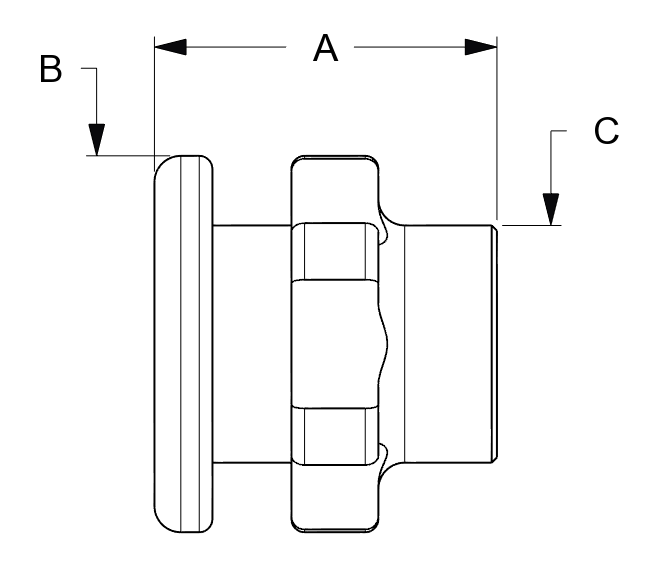

Dimensions (mm)

Length (A)

Ø B

Head (B)

Ø C

Install Hole Ø

Thread Length

Product Code: HG.M5-09

Thread: M5

Thread Style: Thru

Head Style: –

Dimensions (mm)

Length (A): 9

Ø B: 12.7

head: –

Ø C: 8

Install Hole Ø: –

Thread Length: 9

Product Code: HG.M5-12B

Thread: M5

Thread Style: Blind

Head Style: –

Dimensions (mm)

Length (A): 12

Ø B: 12.7

head: –

Ø C: 8

Install Hole Ø: –

Thread Length: 9

Product Code: HG.M6-06

Thread: M6

Thread Style: Thru

Head Style: –

Dimensions (mm)

Length (A): 6

Ø B: 14.3

head: –

Ø C: 9

Install Hole Ø: –

Thread Length: 6

Product Code: HG.M6-09

Thread: M6

Thread Style: Thru

Head Style: –

Dimensions (mm)

Length (A): 9

Ø B: 14.3

head: –

Ø C: 9

Install Hole Ø: –

Thread Length: 9

Product Code: HG.M6-12

Thread: M6

Thread Style: Thru

Head Style: –

Dimensions (mm)

Length (A): 12

Ø B: 14.3

head: –

Ø C: 9

Install Hole Ø: –

Thread Length: 12

Product Code: HG.M6-13B

Thread: M6

Thread Style: Blind

Head Style: –

Dimensions (mm)

Length (A): 13

Ø B: 14.3

head: –

Ø C: 9

Install Hole Ø: –

Thread Length: 10

Product Code: HG.M8-08

Thread: M8

Thread Style: Thru

Head Style: –

Dimensions (mm)

Length (A): 8

Ø B: 17.5

head: –

Ø C: 12

Install Hole Ø: –

Thread Length: 8

Product Code: HG.M8-12

Thread: M8

Thread Style: Thru

Head Style: –

Dimensions (mm)

Length (A): 12

Ø B: 17.5

head: –

Ø C: 12

Install Hole Ø: –

Thread Length: 12

Product Code: HG.M8-16

Thread: M8

Thread Style: Thru

Head Style: –

Dimensions (mm)

Length (A): 16

Ø B: 17.5

head: –

Ø C: 12

Install Hole Ø: –

Thread Length: 16

Product Code: HG.M8-16B

Thread: M8

Thread Style: Blind

Head Style: –

Dimensions (mm)

Length (A): 16

Ø B: 17.5

head: –

Ø C: 12

Install Hole Ø: –

Thread Length: 12

Product Code: HG.M10-10

Thread: M10

Thread Style: Thru

Head Style: –

Dimensions (mm)

Length (A): 10

Ø B: 22.2

head: –

Ø C: 15

Install Hole Ø: –

Thread Length: 10

Product Code: HG.M10-15

Thread: M10

Thread Style: Thru

Head Style: –

Dimensions (mm)

Length (A): 15

Ø B: 22.2

head: –

Ø C: 15

Install Hole Ø: –

Thread Length: 15

Product Code: HG.M10-20B

Thread: M10

Thread Style: Blind

Head Style: –

Dimensions (mm)

Length (A): 20

Ø B: 22.2

head: –

Ø C: 15

Install Hole Ø: –

Thread Length: 15

Product Code: HG.M12-18

Thread: M12

Thread Style: Thru

Head Style: –

Dimensions (mm)

Length (A): 18

Ø B: 25.4

head: –

Ø C: 18

Install Hole Ø: –

Thread Length: 18

Product Code: HG.M12-24B

Thread: M12

Thread Style: Blind

Head Style: –

Dimensions (mm)

Length (A): 24

Ø B: 25.4

head: –

Ø C: 18

Install Hole Ø: –

Thread Length: 18

Product Code: HG.M16-30B

Thread: M16

Thread Style: Blind

Head Style: –

Dimensions (mm)

Length (A): 30

Ø B: 28.5

head: –

Ø C: 21

Install Hole Ø: –

Thread Length: 24
