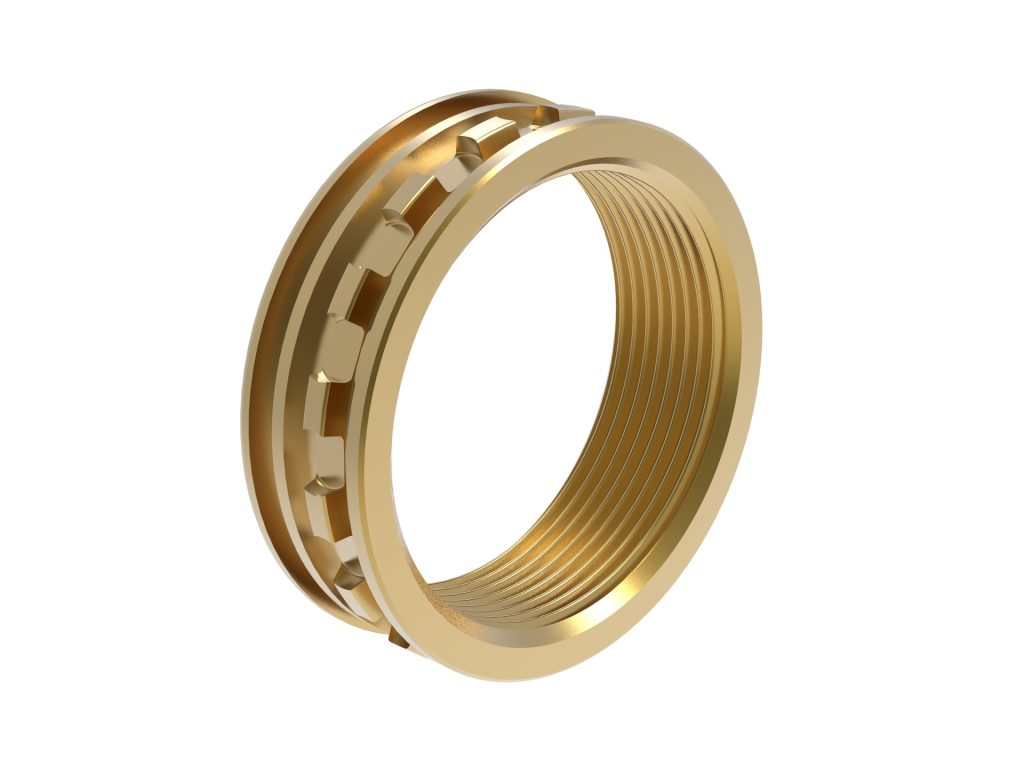

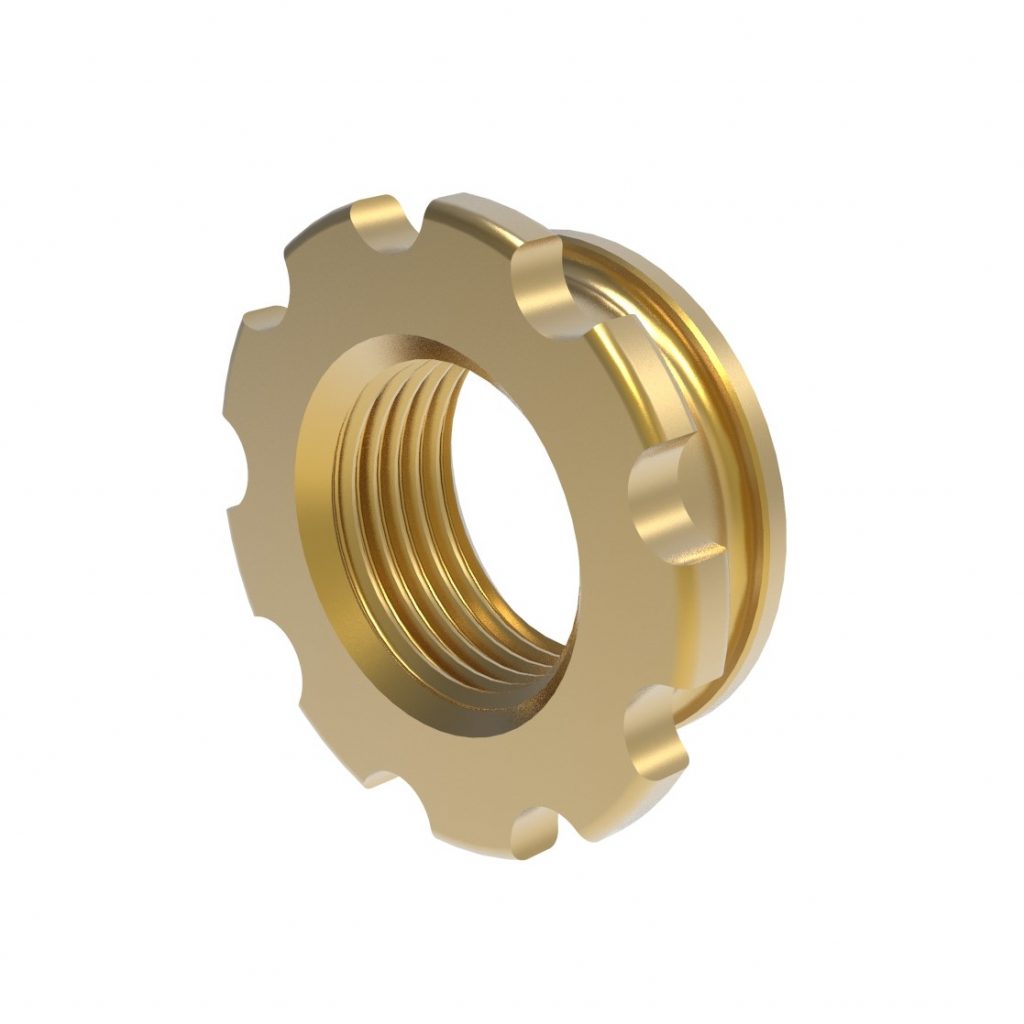

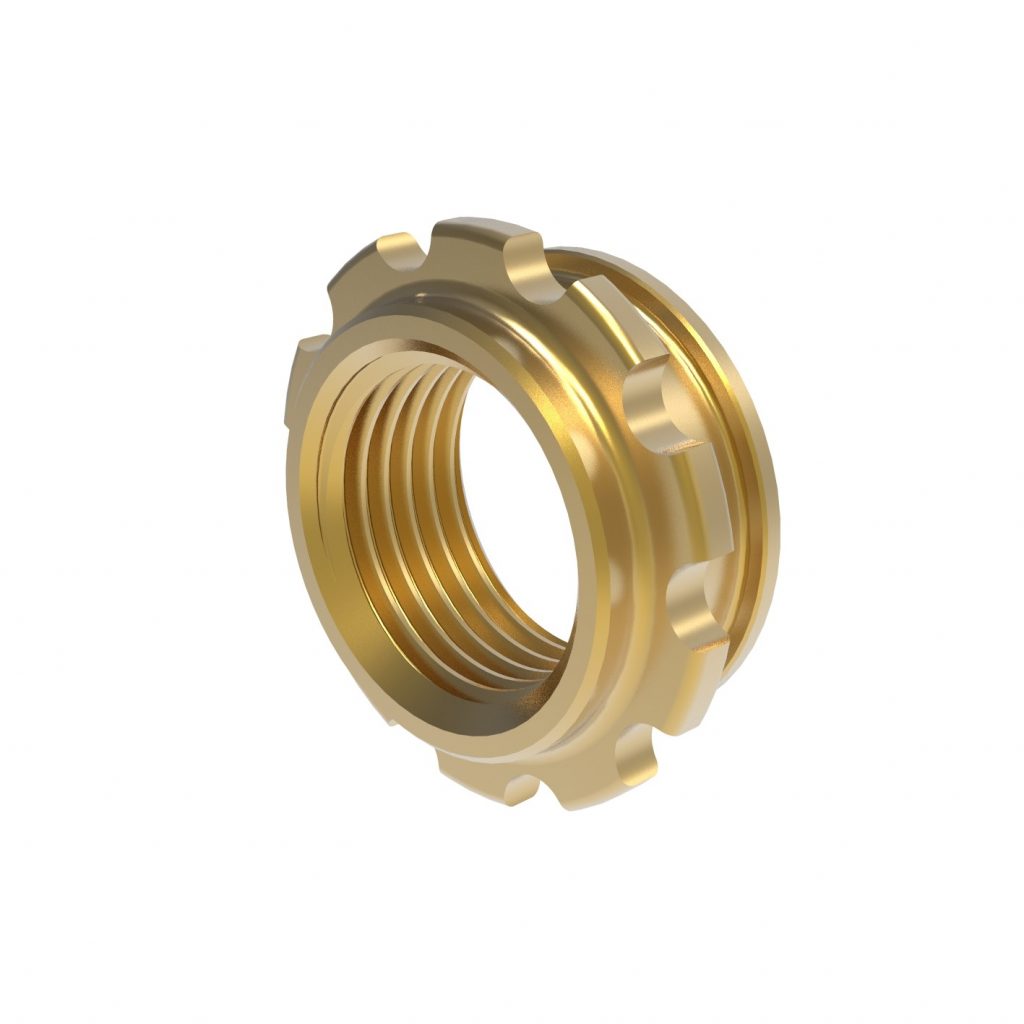

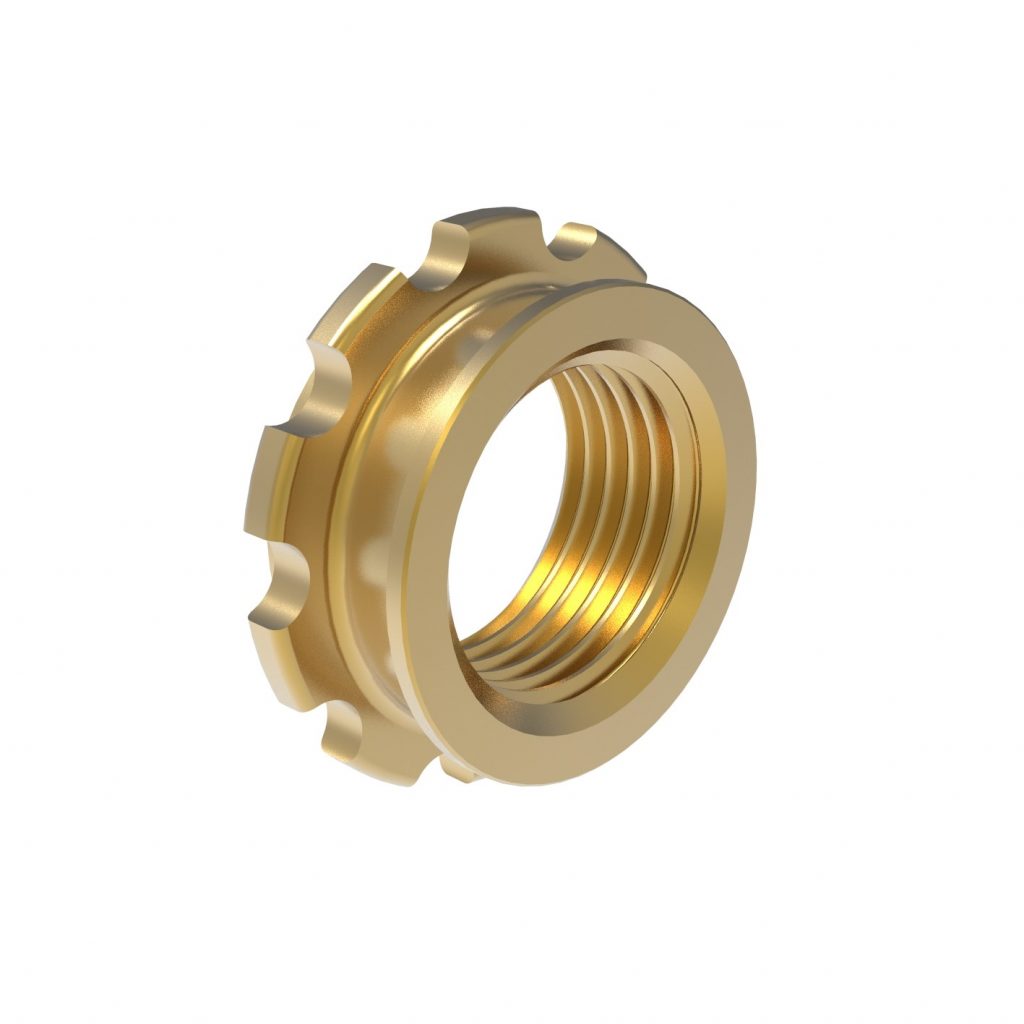

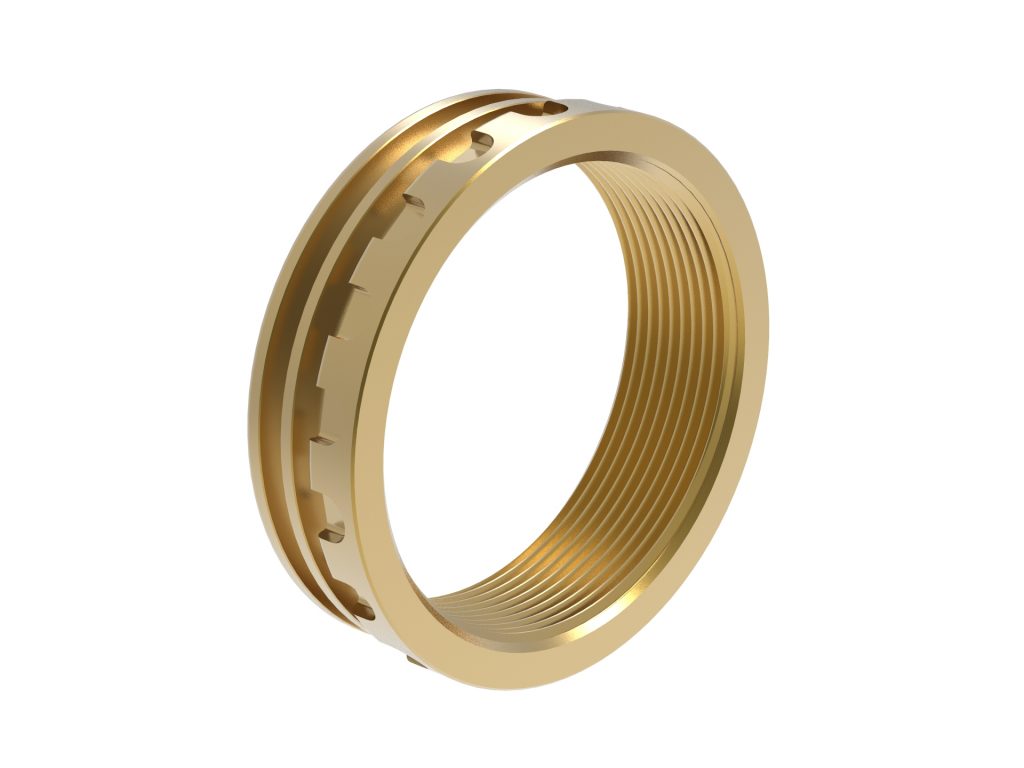

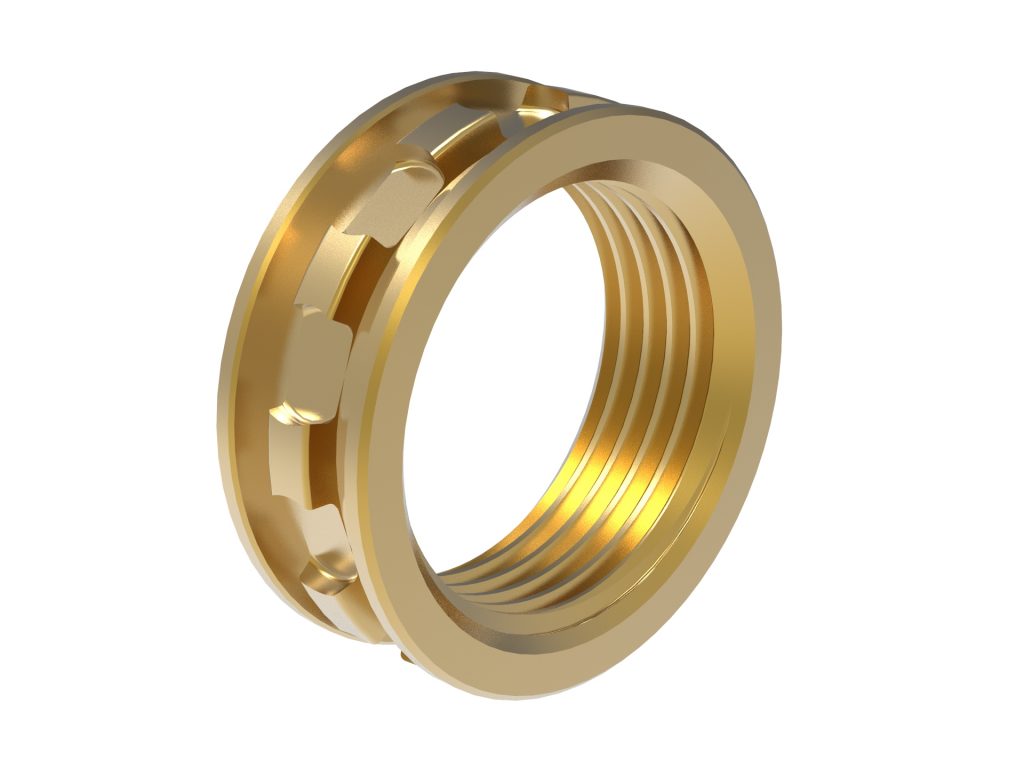

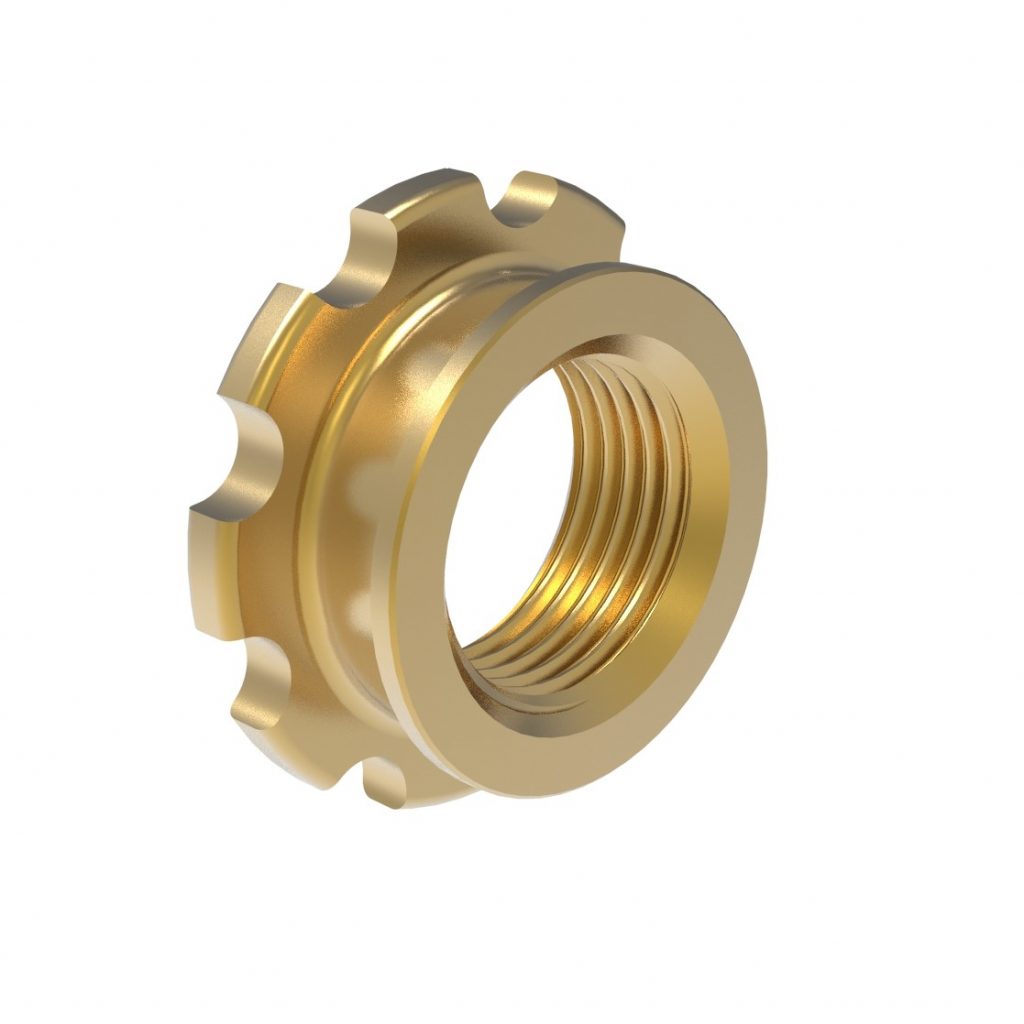

HG.G High Grip Flow series - DZR Brass
High Grip Threaded Inserts for fluid connections in Rotational Moulding

  • High Grip flange profile for maximum spin-resistance
  • Dezincification-resistant brass for use in plumbing applications
  • Full-form precision BSP threads to AS 1722
  • Stocked in thread sizes: ⅛ BSP to 2½ BSP (ISO G)


↓ Scroll and select product code to show Images and Drawing

Pricelist
Product Code
Thread
Thread Style
Head Style

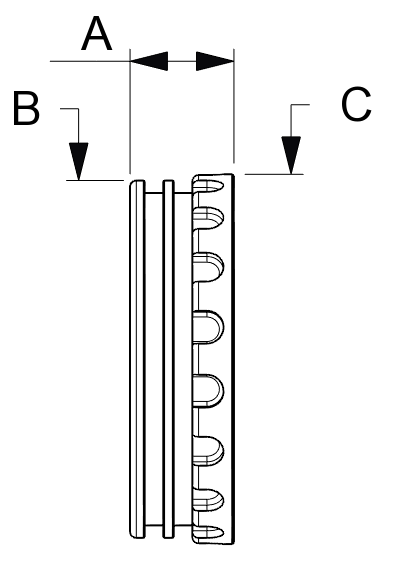

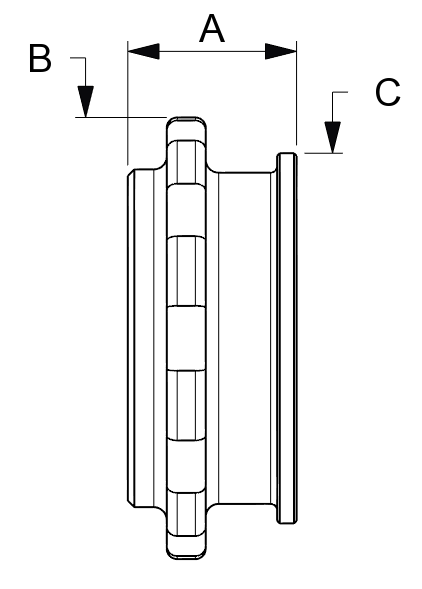

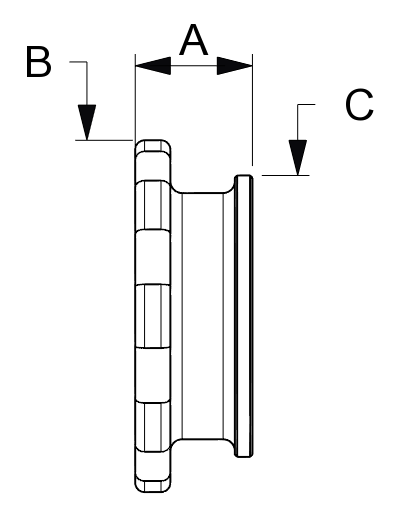

Dimensions (mm)

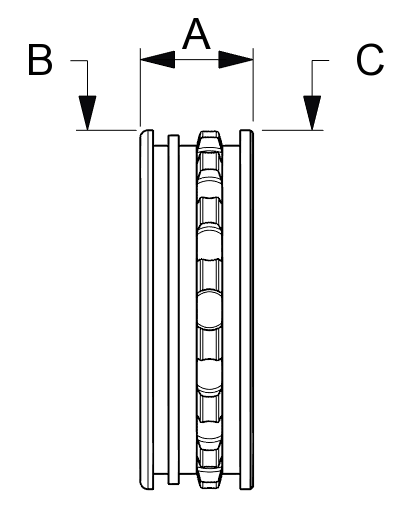

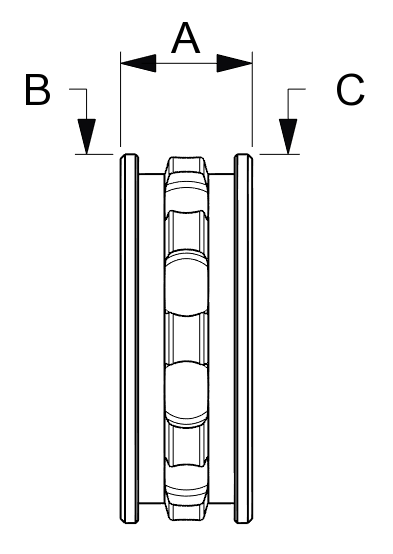

Length (A)
Ø B
Head (B)
Ø C
Install Hole Ø
Thread Length
Product Code: HG.6G-10
Thread: G1/8
Thread Style: Thru
Head Style: –
Dimensions (mm)
Length (A): 10
Ø B: 20
head: –
Ø C: 15
Install Hole Ø: –
Thread Length: 10
Product Code: HG.8G-10
Thread: G1/4
Thread Style: Thru
Head Style: –
Dimensions (mm)
Length (A): 10
Ø B: 25
head: –
Ø C: 19
Install Hole Ø: –
Thread Length: 10
Product Code: HG.10G-10
Thread: G3/8
Thread Style: Thru
Head Style: –
Dimensions (mm)
Length (A): 10
Ø B: 30
head: –
Ø C: 24
Install Hole Ø: –
Thread Length: 10
Product Code: HG.15G-13
Thread: G1/2
Thread Style: Thru
Head Style: –
Dimensions (mm)
Length (A): 13
Ø B: 34
head: –
Ø C: 28.5
Install Hole Ø: –
Thread Length: 13
Product Code: HG.20G-13
Thread: G3/4
Thread Style: Thru
Head Style: –
Dimensions (mm)
Length (A): 13
Ø B: 35
head: –
Ø C: 35
Install Hole Ø: –
Thread Length: 13
Product Code: HG.25G-15
Thread: G1.0
Thread Style: Thru
Head Style: –
Dimensions (mm)
Length (A): 15
Ø B: 42
head: –
Ø C: 42
Install Hole Ø: –
Thread Length: 15
Product Code: HG.32G-15
Thread: G1 1/4
Thread Style: Thru
Head Style: –
Dimensions (mm)
Length (A): 15
Ø B: 51
head: –
Ø C: 51
Install Hole Ø: –
Thread Length: 15
Product Code: HG.40G-15
Thread: G1 1/2
Thread Style: Thru
Head Style: –
Dimensions (mm)
Length (A): 15
Ø B: 57
head: –
Ø C: 57
Install Hole Ø: –
Thread Length: 15
Product Code: HG.50G-22
Thread: G2.0
Thread Style: Thru
Head Style: –
Dimensions (mm)
Length (A): 22
Ø B: 70
head: –
Ø C: 70
Install Hole Ø: –
Thread Length: 22
Product Code: HG.65G-25
Thread: G2 1/2
Thread Style: Thru
Head Style: –
Dimensions (mm)
Length (A): 25
Ø B: 86
head: –
Ø C: 89
Install Hole Ø: –
Thread Length: 25
