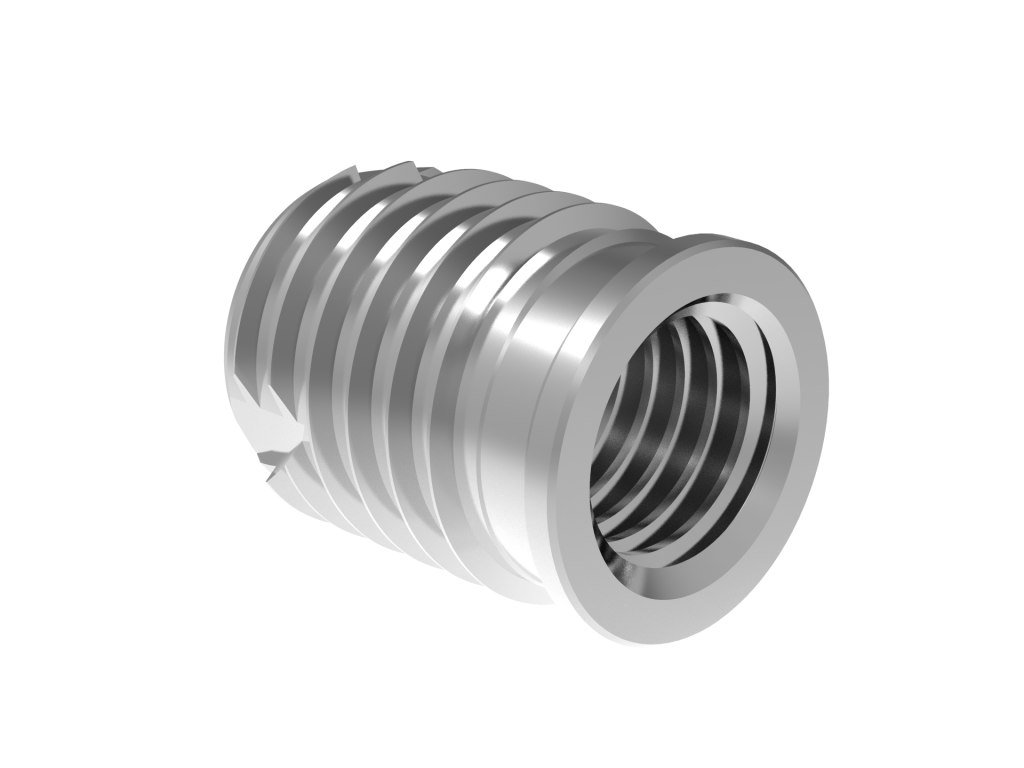

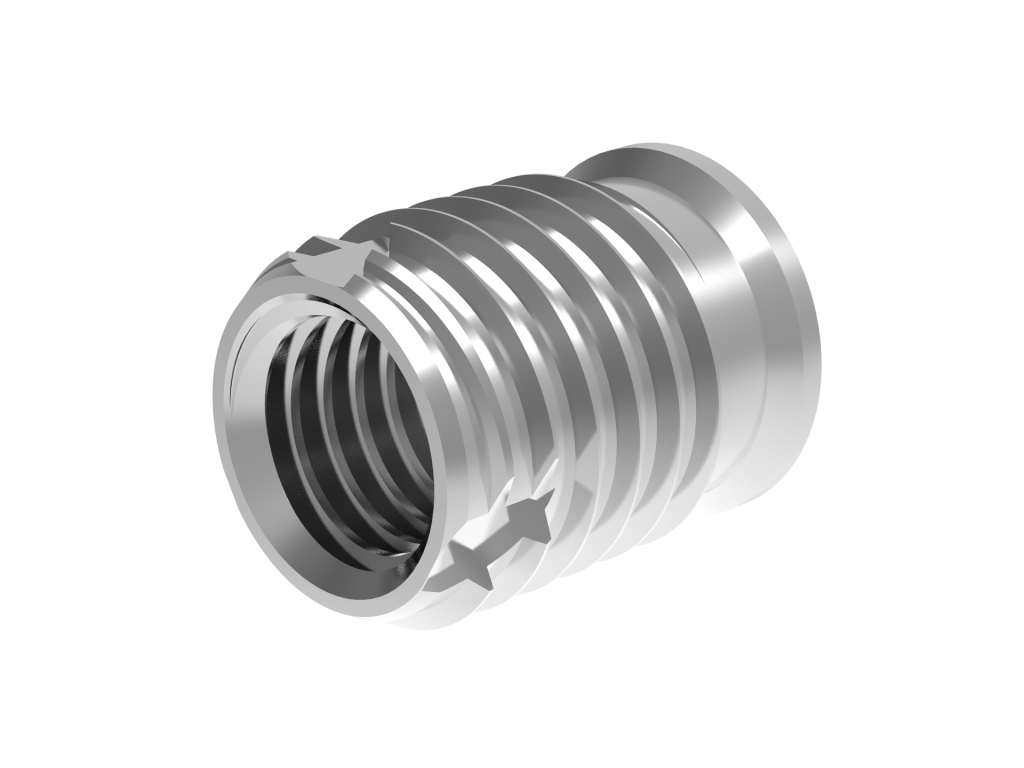

TRSS Trisert-3® - 316 Stainless Steel
Self-tapping Stainless Steel Threaded Inserts for post-mould installation

  • For use in Thermoplastic & Thermosetting materials
  • Install by hand or powered tool
  • Reduced Head Style
  • Stocked in thread sizes: M3 - M10


↓ Scroll and select product code to show Images and Drawing

Product Code
Thread
Thread Style
Head Style

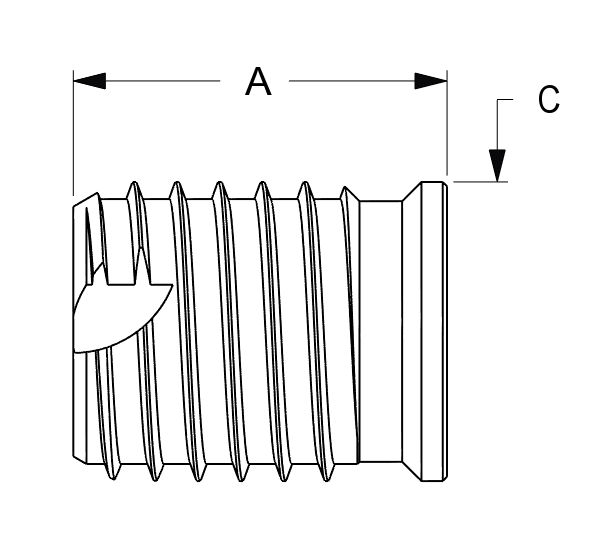

Dimensions (mm)
Length (A)
Ø B
Head (B)
Ø C
Install Hole Ø
Thread Length
Product Code: TRSS.M3-06
Thread: M3 Thru
Thread Style: –
Head Style: Reduced Head
Dimensions (mm)
Length (A): 6.25
Ø B: –
head: –
Ø C: 4.7
Install Hole Ø: 4.1 - 4.4
Thread Length: –
Product Code: TRSS.M4-08
Thread: M4 Thru
Thread Style: –
Head Style: Reduced Head
Dimensions (mm)
Length (A): 8.4
Ø B: –
head: –
Ø C: 6.3
Install Hole Ø: 5.8 - 6.1
Thread Length: –
Product Code: TRSS.M5-10
Thread: M5 Thru
Thread Style: –
Head Style: Reduced Head
Dimensions (mm)
Length (A): 10.0
Ø B: –
head: –
Ø C: 7.5
Install Hole Ø: 6.9 - 7.2
Thread Length: –
Product Code: TRSS.M6-12
Thread: M6 Thru
Thread Style: –
Head Style: Reduced Head
Dimensions (mm)
Length (A): 12.0
Ø B: –
head: –
Ø C: 8.6
Install Hole Ø: 8.0 - 8.4
Thread Length: –
Product Code: TRSS.M8-14
Thread: M8 Thru
Thread Style: –
Head Style: Reduced Head
Dimensions (mm)
Length (A): 14.0
Ø B: –
head: –
Ø C: 11.1
Install Hole Ø: 10.1 - 10.6
Thread Length: –
Product Code: TRSS.M10-18
Thread: M10 Thru
Thread Style: –
Head Style: Reduced Head
Dimensions (mm)
Length (A): 18.0
Ø B: –
head: –
Ø C: 14.1
Install Hole Ø: 13.0 - 13.5
Thread Length: –
