TU TR TH Trisert® - Brass - 3 Head Styles
Self-tapping Threaded Inserts for post-mould installation

For use in Thermoplastic & Thermosetting materials
Install by hand or powered tool
3 Styles: Unheaded / Reduced Head / Headed
Stocked in thread sizes: M2 - M10

↓ Scroll and select product code to show Images and Drawing

Product Code

Thread

Thread Style

Head Style

Dimensions (mm)

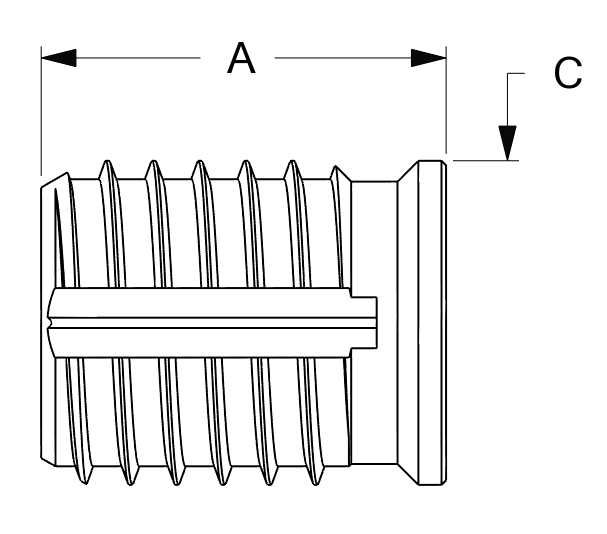

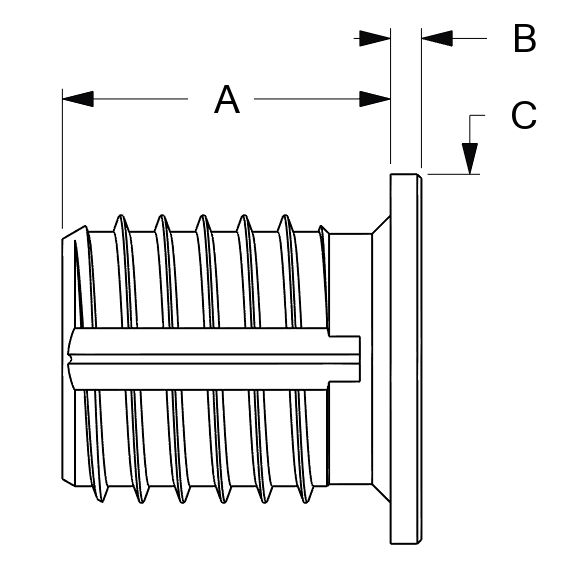

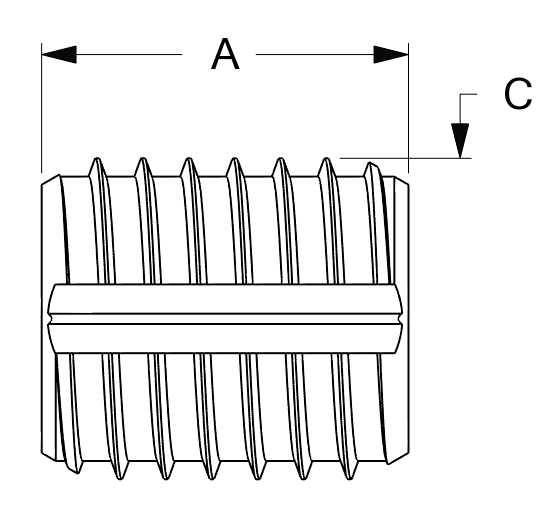

Length (A)

Ø B

Head (B)

Ø C

Install Hole Ø

Thread Length

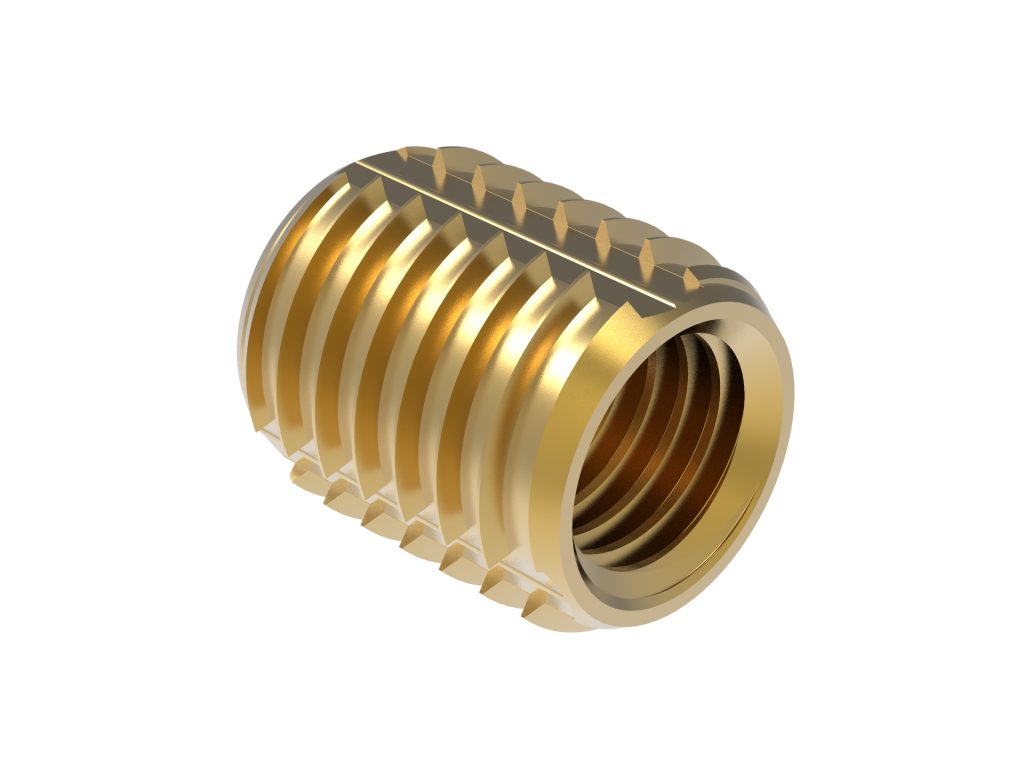

Product Code: TU.M2-04

Thread: M2

Thread Style: –

Head Style: Unheaded

Dimensions (mm)

Length (A): 4

Ø B: –

head: -

Ø C: -

Install Hole Ø: 31. - 3.3

Thread Length: –

Product Code: TU.M2-05

Thread: M2

Thread Style: –

Head Style: Unheaded

Dimensions (mm)

Length (A): 4.8

Ø B: –

head: -

Ø C: -

Install Hole Ø: 31. - 3.3

Thread Length: –

Product Code: TU.M2-06

Thread: M2

Thread Style: –

Head Style: Unheaded

Dimensions (mm)

Length (A): 6.05

Ø B: –

head: -

Ø C: -

Install Hole Ø: 31. - 3.3

Thread Length: –

Product Code: TU.M2.5-04

Thread: M2.5

Thread Style: –

Head Style: Unheaded

Dimensions (mm)

Length (A): 4

Ø B: –

head: -

Ø C: -

Install Hole Ø: 3.8 - 4.1

Thread Length: –

Product Code: TU.M2.5-05

Thread: M2.5

Thread Style: –

Head Style: Unheaded

Dimensions (mm)

Length (A): 5.25

Ø B: –

head: -

Ø C: -

Install Hole Ø: 3.8 - 4.1

Thread Length: –

Product Code: TU.M2.5-06

Thread: M2.5

Thread Style: –

Head Style: Unheaded

Dimensions (mm)

Length (A): 6.25

Ø B: –

head: -

Ø C: -

Install Hole Ø: 3.8 - 4.1

Thread Length: –

Product Code: TU.M3-04

Thread: M3

Thread Style: –

Head Style: Unheaded

Dimensions (mm)

Length (A): 4

Ø B: –

head: -

Ø C: -

Install Hole Ø: 4.1 - 4.4

Thread Length: –

Product Code: TU.M3-05

Thread: M3

Thread Style: –

Head Style: Unheaded

Dimensions (mm)

Length (A): 5.25

Ø B: –

head: -

Ø C: -

Install Hole Ø: 4.1 - 4.4

Thread Length: –

Product Code: TU.M3-06

Thread: M3

Thread Style: –

Head Style: Unheaded

Dimensions (mm)

Length (A): 6.25

Ø B: –

head: -

Ø C: -

Install Hole Ø: 4.1 - 4.4

Thread Length: –

Product Code: TU.M4-06

Thread: M4

Thread Style: –

Head Style: Unheaded

Dimensions (mm)

Length (A): 5.6

Ø B: –

head: -

Ø C: -

Install Hole Ø: 5.8 - 6.1

Thread Length: –

Product Code: TU.M4-07

Thread: M4

Thread Style: –

Head Style: Unheaded

Dimensions (mm)

Length (A): 7.1

Ø B: –

head: -

Ø C: -

Install Hole Ø: 5.8 - 6.1

Thread Length: –

Product Code: TU.M4-08

Thread: M4

Thread Style: –

Head Style: Unheaded

Dimensions (mm)

Length (A): 8.4

Ø B: –

head: -

Ø C: -

Install Hole Ø: 5.8 - 6.1

Thread Length: –

Product Code: TU.M5-06

Thread: M5

Thread Style: –

Head Style: Unheaded

Dimensions (mm)

Length (A): 6.4

Ø B: –

head: -

Ø C: -

Install Hole Ø: 6.9 - 7.2

Thread Length: –

Product Code: TU.M5-08

Thread: M5

Thread Style: –

Head Style: Unheaded

Dimensions (mm)

Length (A): 8.4

Ø B: –

head: -

Ø C: -

Install Hole Ø: 6.9 - 7.2

Thread Length: –

Product Code: TU.M5-10

Thread: M5

Thread Style: –

Head Style: Unheaded

Dimensions (mm)

Length (A): 10

Ø B: –

head: -

Ø C: -

Install Hole Ø: 6.9 - 7.2

Thread Length: –

Product Code: TU.M6-08

Thread: M6

Thread Style: –

Head Style: Unheaded

Dimensions (mm)

Length (A): 7.9

Ø B: –

head: -

Ø C: -

Install Hole Ø: 8.0 - 8.4

Thread Length: –

Product Code: TU.M6-10

Thread: M6

Thread Style: –

Head Style: Unheaded

Dimensions (mm)

Length (A): 9.8

Ø B: –

head: -

Ø C: -

Install Hole Ø: 8.0 - 8.4

Thread Length: –

Product Code: TU.M6-12

Thread: M6

Thread Style: –

Head Style: Unheaded

Dimensions (mm)

Length (A): 12

Ø B: –

head: -

Ø C: -

Install Hole Ø: 8.0 - 8.4

Thread Length: –

Product Code: TU.M8-10

Thread: M8

Thread Style: –

Head Style: Unheaded

Dimensions (mm)

Length (A): 9.5

Ø B: –

head: -

Ø C: -

Install Hole Ø: 10.1 - 10.6

Thread Length: –

Product Code: TU.M8-12

Thread: M8

Thread Style: –

Head Style: Unheaded

Dimensions (mm)

Length (A): 12.4

Ø B: –

head: -

Ø C: -

Install Hole Ø: 10.1 - 10.6

Thread Length: –

Product Code: TU.M10-12

Thread: M10

Thread Style: –

Head Style: Unheaded

Dimensions (mm)

Length (A): 12

Ø B: –

head: -

Ø C: -

Install Hole Ø: 13.0 - 13.5

Thread Length: –

Product Code: TU.M10-16

Thread: M10

Thread Style: –

Head Style: Unheaded

Dimensions (mm)

Length (A): 16

Ø B: –

head: -

Ø C: -

Install Hole Ø: 13.0 - 13.5

Thread Length: –

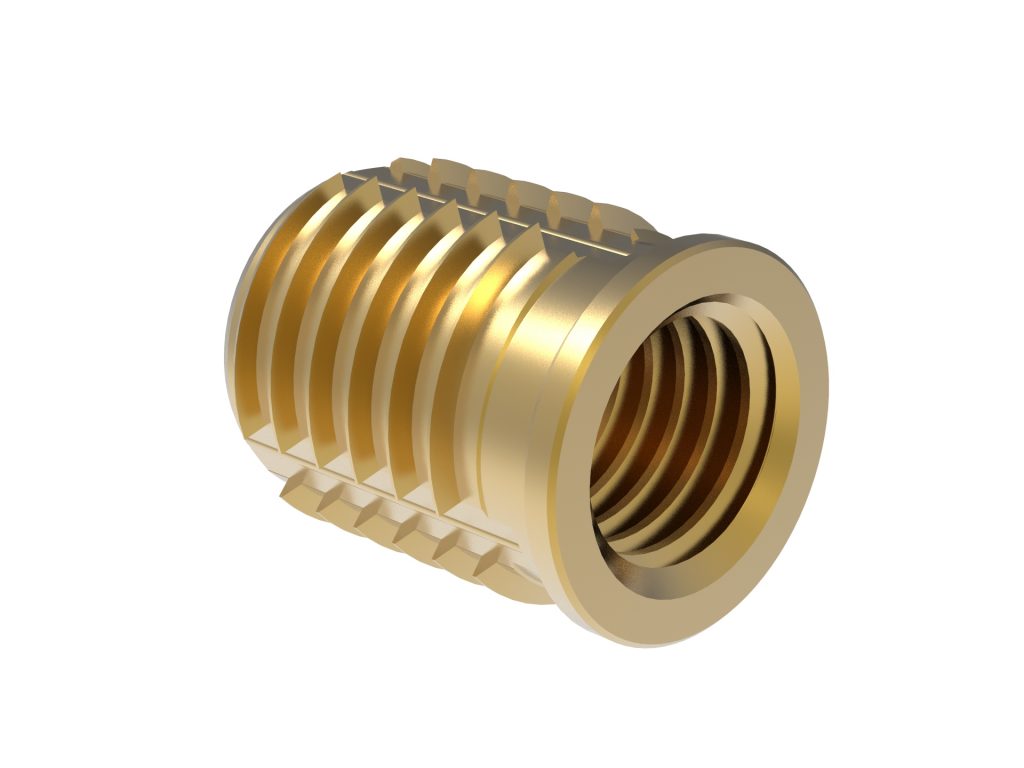

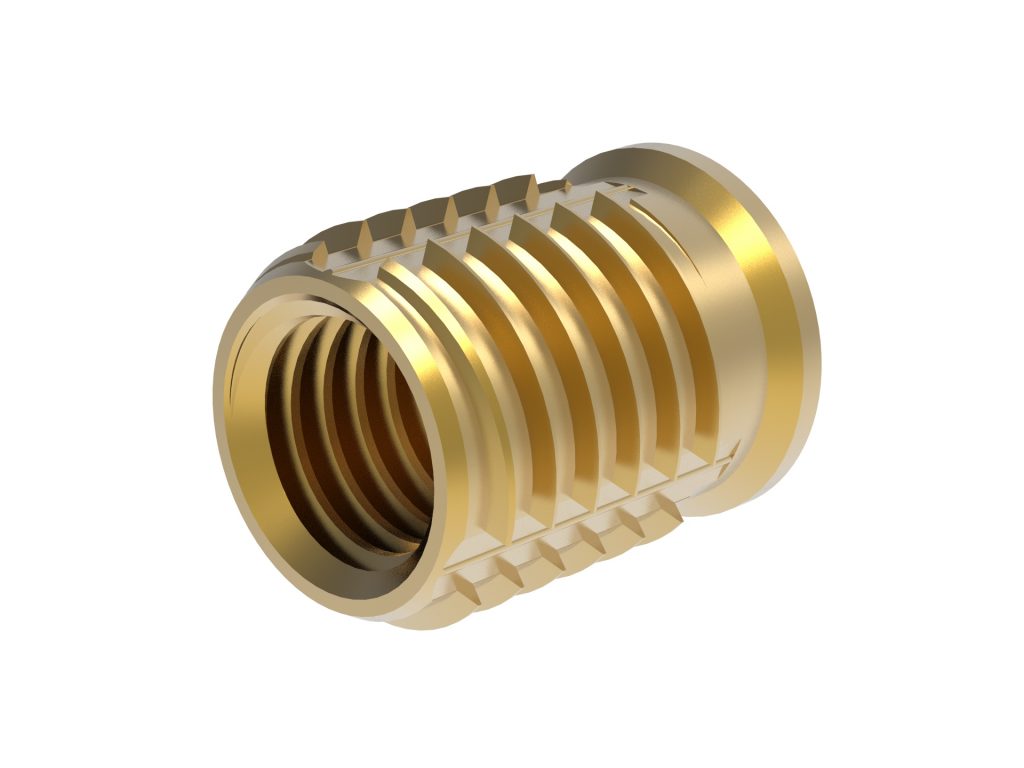

Product Code: TR.M3-06

Thread: M3

Thread Style: –

Head Style: Reduced Head

Dimensions (mm)

Length (A): 6.25

Ø B: –

head: -

Ø C: 4.7

Install Hole Ø: 4.1 - 4.4

Thread Length: –

Product Code: TR.M4-08

Thread: M4

Thread Style: –

Head Style: Reduced Head

Dimensions (mm)

Length (A): 8.4

Ø B: –

head: -

Ø C: 6.3

Install Hole Ø: 5.8 - 6.1

Thread Length: –

Product Code: TR.M5-10

Thread: M5

Thread Style: –

Head Style: Reduced Head

Dimensions (mm)

Length (A): 10

Ø B: –

head: -

Ø C: 7.5

Install Hole Ø: 6.9 - 7.2

Thread Length: –

Product Code: TR.M6-12

Thread: M6

Thread Style: –

Head Style: Reduced Head

Dimensions (mm)

Length (A): 12

Ø B: –

head: -

Ø C: 8.6

Install Hole Ø: 8.0 - 8.4

Thread Length: –

Product Code: TR.M8-14

Thread: M8

Thread Style: –

Head Style: Reduced Head

Dimensions (mm)

Length (A): 14

Ø B: –

head: -

Ø C: 11.1

Install Hole Ø: 10.1 - 10.6

Thread Length: –

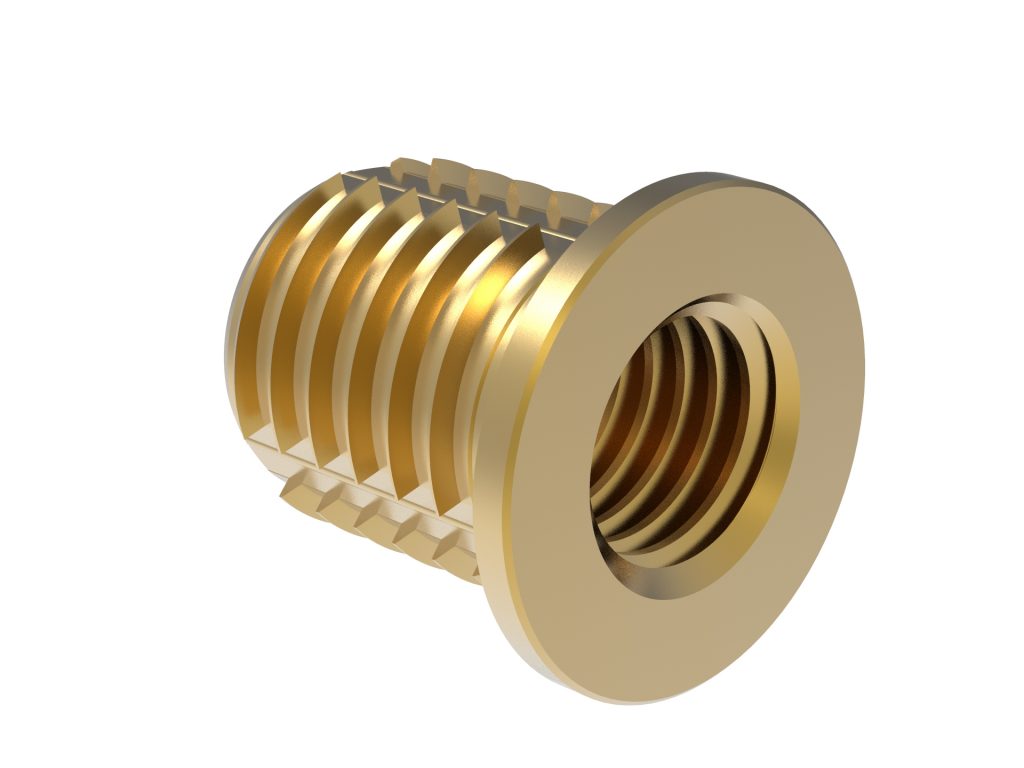

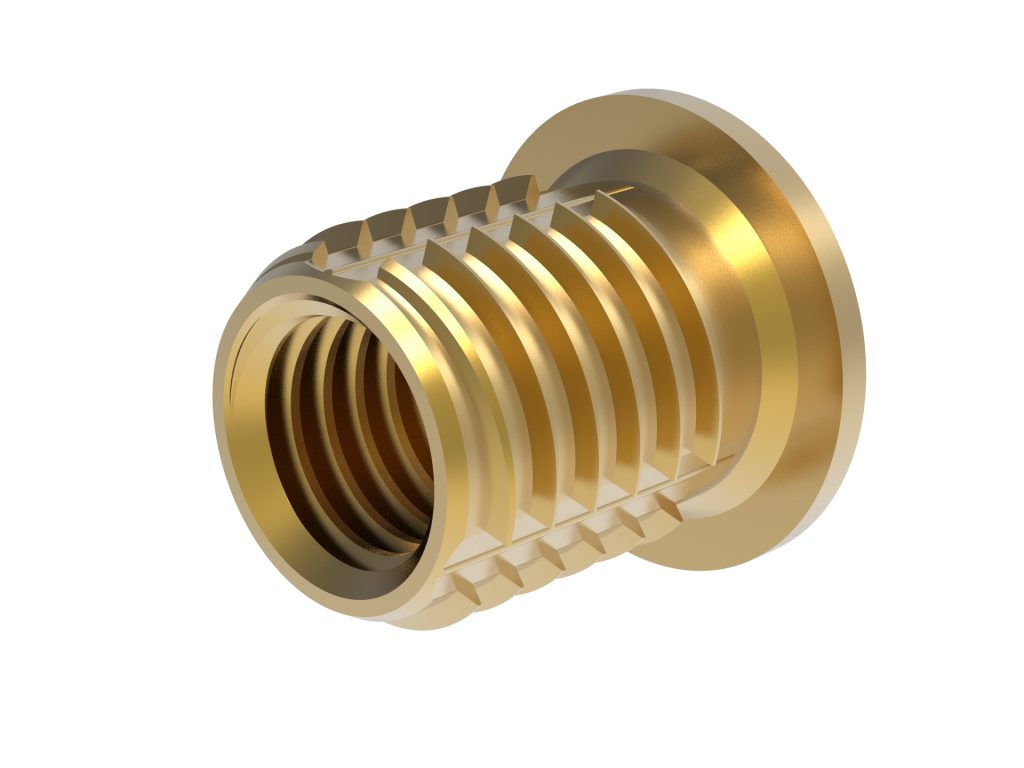

Product Code: TH.M2.5-04

Thread: M2.5

Thread Style: –

Head Style: Headed

Dimensions (mm)

Length (A): 4

Ø B: –

head: 0.6

Ø C: 6.35

Install Hole Ø: 3.8 - 4.1

Thread Length: –

Product Code: TH.M2.5-05

Thread: M2.5

Thread Style: –

Head Style: Headed

Dimensions (mm)

Length (A): 5.25

Ø B: –

head: 0.6

Ø C: 6.35

Install Hole Ø: 3.8 - 4.1

Thread Length: –

Product Code: TH.M3-04

Thread: M3

Thread Style: –

Head Style: Headed

Dimensions (mm)

Length (A): 4

Ø B: –

head: 0.75

Ø C: 7.1

Install Hole Ø: 4.1 - 4.4

Thread Length: –

Product Code: TH.M3-05

Thread: M3

Thread Style: –

Head Style: Headed

Dimensions (mm)

Length (A): 5.25

Ø B: –

head: 0.75

Ø C: 7.1

Install Hole Ø: 4.1 - 4.4

Thread Length: –

Product Code: TH.M4-06

Thread: M4

Thread Style: –

Head Style: Headed

Dimensions (mm)

Length (A): 5.6

Ø B: –

head: 0.75

Ø C: 8.7

Install Hole Ø: 5.8 - 6.1

Thread Length: –

Product Code: TH.M4-07

Thread: M4

Thread Style: –

Head Style: Headed

Dimensions (mm)

Length (A): 7.1

Ø B: –

head: 0.75

Ø C: 8.7

Install Hole Ø: 5.8 - 6.1

Thread Length: –

Product Code: TH.M5-06

Thread: M5

Thread Style: –

Head Style: Headed

Dimensions (mm)

Length (A): 6.4

Ø B: –

head: 0.9

Ø C: 11.1

Install Hole Ø: 6.9 - 7.2

Thread Length: –

Product Code: TH.M5-08

Thread: M5

Thread Style: –

Head Style: Headed

Dimensions (mm)

Length (A): 8.4

Ø B: –

head: 0.9

Ø C: 11.1

Install Hole Ø: 6.9 - 7.2

Thread Length: –

Product Code: TH.M6-08

Thread: M6

Thread Style: –

Head Style: Headed

Dimensions (mm)

Length (A): 7.9

Ø B: –

head: 1

Ø C: 12

Install Hole Ø: 8.0 - 8.4

Thread Length: –

Product Code: TH.M6-10

Thread: M6

Thread Style: –

Head Style: Headed

Dimensions (mm)

Length (A): 9.8

Ø B: –

head: 1

Ø C: 12

Install Hole Ø: 8.0 - 8.4

Thread Length: –

Product Code: TH.M8-08

Thread: M8

Thread Style: –

Head Style: Headed

Dimensions (mm)

Length (A): 7.5

Ø B: –

head: 1.25

Ø C: 14.3

Install Hole Ø: 10.1 - 10.6

Thread Length: –

Product Code: TH.M8-12

Thread: M8

Thread Style: –

Head Style: Headed

Dimensions (mm)

Length (A): 12.4

Ø B: –

head: 1.25

Ø C: 14.3

Install Hole Ø: 10.1 - 10.6

Thread Length: –

Product Code: TH.M10-12

Thread: M10

Thread Style: –

Head Style: Headed

Dimensions (mm)

Length (A): 12

Ø B: –

head: 1.5

Ø C: 18

Install Hole Ø: 13.0 - 13.5

Thread Length: –

Product Code: TH.M10-16

Thread: M10

Thread Style: –

Head Style: Headed

Dimensions (mm)

Length (A): 16

Ø B: –

head: 1.5

Ø C: 18

Install Hole Ø: 13.0 - 13.5

Thread Length: –
