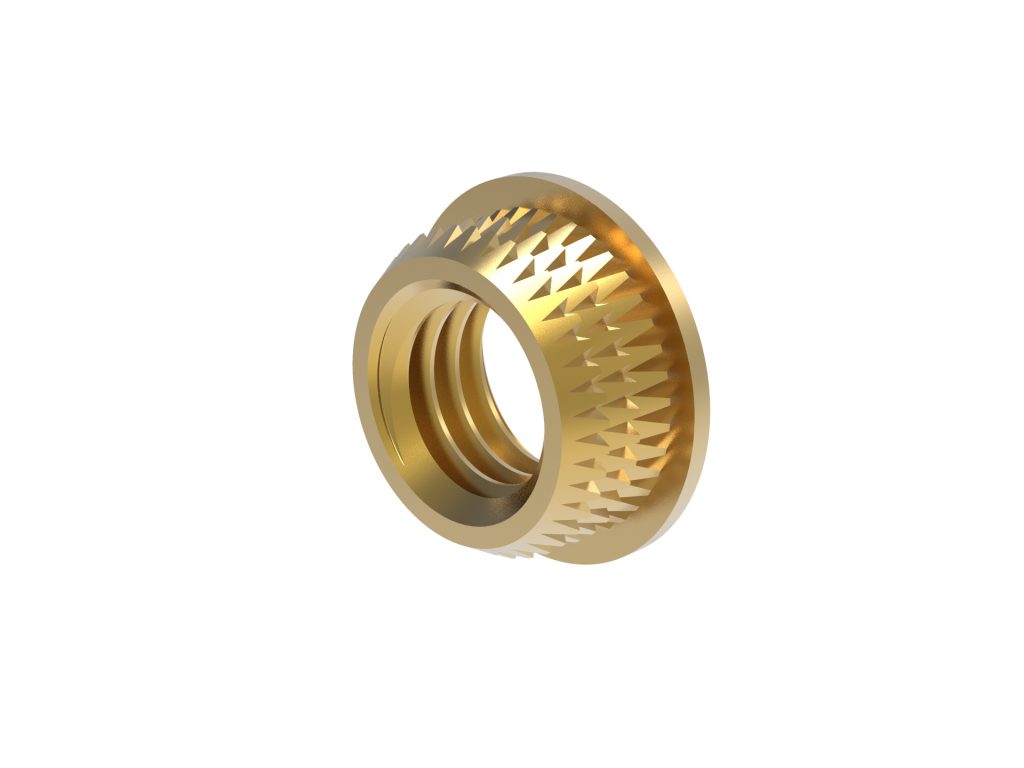

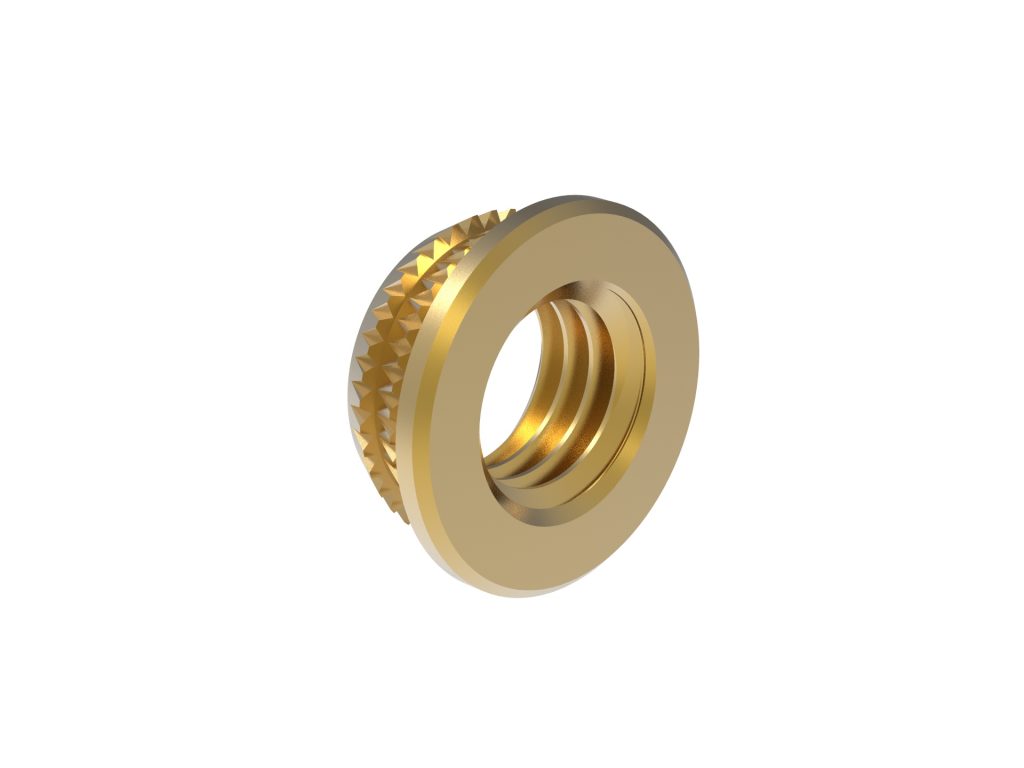

MB Microbarb® - Brass
Short Threaded Inserts for pull-through applications

  • Large head, Short body
  • For pull-through applications in thin section materials
  • Stocked in thread sizes: M3 - M8

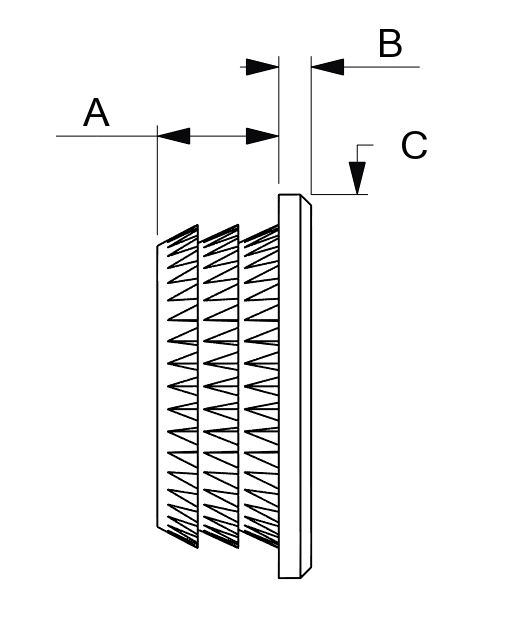

↓ Scroll and select product code to show Images and Drawing

Product Code
Thread
Thread Style
Head Style
Dimensions (mm)
Length (A)
Ø B
Head (B)
Ø C
Install Hole Ø
Thread Length
Product Code: MB.M3-02
Thread: M3
Thread Style: –
Head Style: Headed
Dimensions (mm)
Length (A): 1.85
Ø B: –
head: 0.85
Ø C: 6.1
Install Hole Ø: 4.6
Thread Length: –
Product Code: MB.M4-03
Thread: M4
Thread Style: –
Head Style: Headed
Dimensions (mm)
Length (A): 3.0
Ø B: –
head: 1.0
Ø C: 7.9
Install Hole Ø: 6.1
Thread Length: –
Product Code: MB.M5-03
Thread: M5
Thread Style: –
Head Style: Headed
Dimensions (mm)
Length (A): 3.0
Ø B: –
head: 1.4
Ø C: 10
Install Hole Ø: 7.7
Thread Length: –
Product Code: MB.M6-03
Thread: M6
Thread Style: –
Head Style: Headed
Dimensions (mm)
Length (A): 3.0
Ø B: –
head: 1.7
Ø C: 12.7
Install Hole Ø: 9.5
Thread Length: –
Product Code: MB.M8-05
Thread: M8
Thread Style: –
Head Style: Headed
Dimensions (mm)
Length (A): 4.55
Ø B: –
head: 1.7
Ø C: 14.3
Install Hole Ø: 11.5
Thread Length: –
